Siemens E3M111 Circuit Card
Brand:SIEMENS
Model number:E3M111
Colour:new
Warranty: 12 months
Lead Time:3-day working day
Country of origin: USA Price: Please contact us
Product weight:0.40kg
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Siemens E3M111 Circuit Card
INQUIRE NOW
Products Name: Siemens E3M111
PRODUCT DESCRIPTION

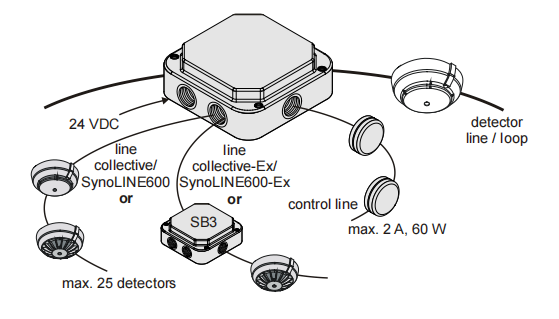

In-/output module suitable for
– collective fire detection system as detection line coupler
– interactive and AnalogPLUS/SynoLOOP fire detection system for the connection of
up to 25 fire detectors with collective/SynoLINE600 address, or for the connection
of monitored alarm devices
Operation with additional DC 24 V supply
Microprocessor-controlled evaluation and line isolation function
Housing for surface mounting with M20 cable entries
Robust construction for use in dry, dusty and wet areas
Description:
Collective line/SynoLINE600
– compatible with
– Connection factor KMK
E3M080, CI1110/15, FC330A, FC10,
FC700A, CZ10, KB24, GF24
1
Interactive line
– compatible with
– Connection factor IMK
– Line separator factor ITK
E3M071, K3M071
2
1
AnalogPLUS/SynoLOOP
– compatible with
– Connection factor APMK
E3M111, K3M111, CI1115, FC330A,
FC700A
3
Secondary line Collective line/SynoLINE600
– Operating voltage
– Operating current
– Line resistance, depends on the type of line
– End-of-line unit
– Line factor KLK
DC 18…22 V
max. 5 mA
50…250 Ω
EOL22 (Ex)
25
External supply
– Operating voltage
– Quiescent current (standby)
– Operating current, collective line
– Operating current, control line
– Ripple
DC 18…32 V
≤ 45 mA
≤ 0.15 A
0.2…2 A
max. 2 Vpp
Control line
– Operating voltage
– Operating current
– End-of-line unit, resistor
DC 18…32 V
max. 2 A, 60 W
3k01, 1 %, ¼ W
Wire cross-sectional area per terminal 0.2…2.5 mm2 (AWG24…14)
Operating temperature -25…+70 °C
Storage temperature -30…+75 °C
Humidity ≤95 % rel.
Color housing white, ~RAL 9010
Protection category
EN 60529 / IEC 60529 with DCA1191 IP56
Standards EN 54-17, EN 54-18
Approvals
– VdS
– LPCB
G298021
126m/02
