Siemens E3X101

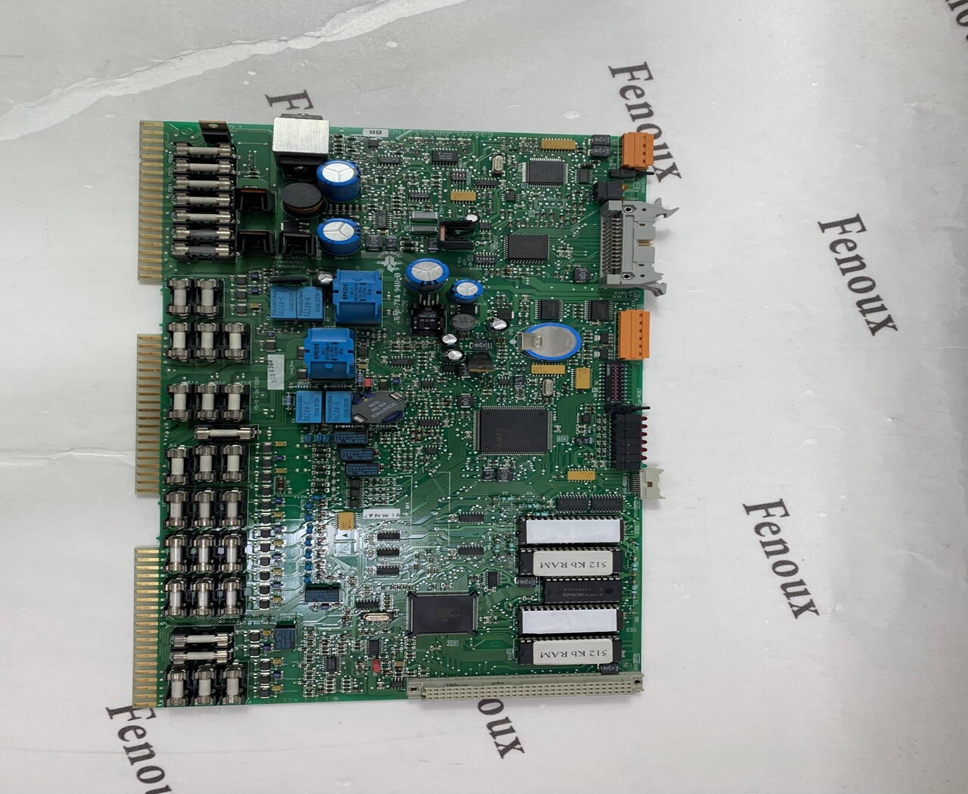

Siemens E3X101 Safety board

Brand:SIEMENS

Model number:E3X101

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.40kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Siemens E3X101 Safety board

INQUIRE NOW

Products Name: Siemens E3X101

PRODUCT DESCRIPTION

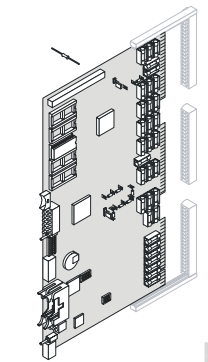

The main evaluating unit contains:

– Main processor with program memory and emergency operation electronics.

– Battery-charging and monitoring unit (40 Ah).

– 8 programmable driver outputs 24 VDC / 40 mA.

– 2 monitored control lines for alarm devices 24 VDC / 2 A.

– Interface C-Bus and supply output for CT11.

– Interface for RS232 level converter.

– Interface and supply output 24 VDC / 2 A for remote transmission equipment.

– Integrated ground fault monitoring.

Î

4 supports with screws for the terminal strips, supplied in cable set Z3I350

Î

EPROM sets –> see chapter 2.4 / RAM sets –> see chapter 2.5

Description:

The main evaluating unit contains:

– Main processor with program memory and emergency operation electronics.

– Flash-ROM 2MBx8Bit.

– SRAM: E3X102 –> 1MBx8Bit, E3X103 –> 2MBx8Bit

– Battery-charging and monitoring unit (40 Ah).

– 8 programmable driver outputs 24 VDC / 40 mA.

– 2 monitored control lines for alarm devices 24 VDC / 2 A.

– Interface C-Bus and supply output for CT11.

– Interface for RS232 level converter.

– Interface and supply output 24 VDC / 2 A for remote transmission equipment.

– Integrated ground fault monitoring.

Interface between control unit and paging system.

Installation:

– In the control unit: Connect and secure using the Z1I030/50 set.

– Use the flat cable 'Micro' F20A020 L = 0.165 m in H47/H67 housing for the CC11.

– Use the flat cable 'Micro' F20A140 L = 0.650 m in H47/H38 housing for the CI11.

– In the CT11: Use Z1B060 mounting accessory

– Use flat cable 'Micro' F20A020, L = 0.165 m

Supplied with:

– Terminal strip with 4 terminals and supply line 'I-Bus'.

Siemens E3X101
