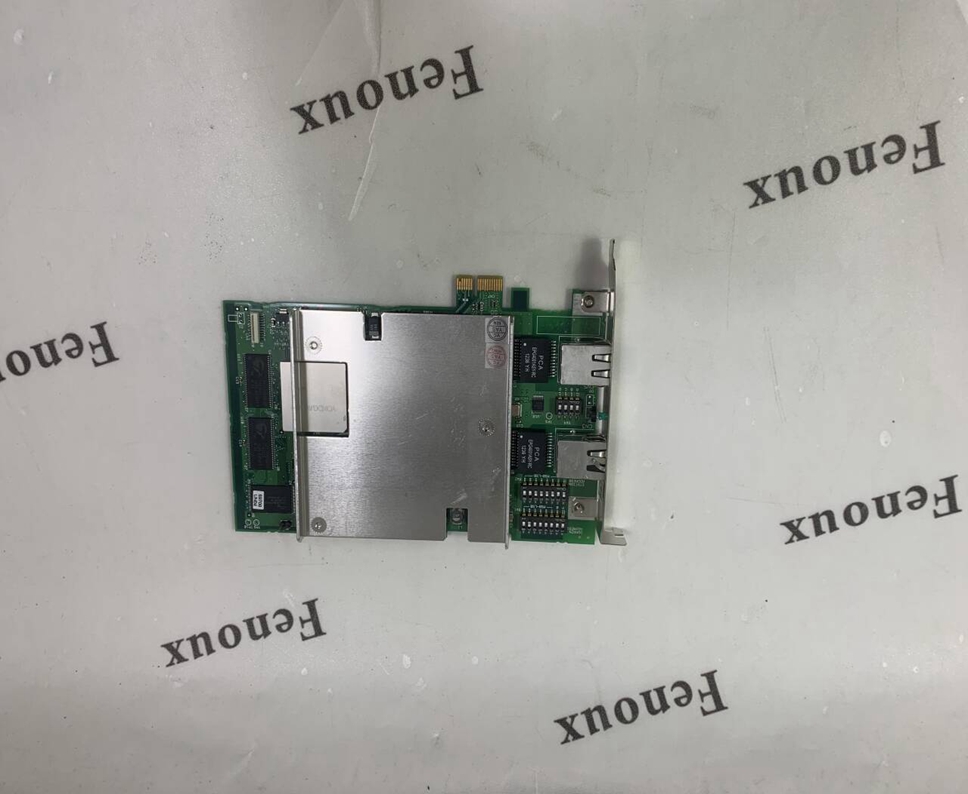

YOKOGAWA VI702

RDY lamp

Lights when it diaghoses the card as normal.

RCV lamp

Lights when it detects signals on a control bus.

SND lamp

Lights when it sends signals to a control bus.

Ethernet connector

Connects a CAT5e (Enhanced Category 5 cable)

By installing the control bus interface card into the PCI

Express slot of the PC/AT compatible computer, the

computer is connected to Vnet/IP.

n FUNCTION

Interface between the PCI Express and Vnet/IP

n STANDARD SPECIFICATIONS

Communication Speed

1 Gbps Full Duplex

Connection Specifications

Cable: CAT5e (Enhanced Category 5 cable), UTP

Transmission: 1000BASE-T compliance

Connector: RJ45 connector

Max. distance: 100 m (Distance between VI702 and

Layer 2 switch)

PCI Express Specifications

Applicable revision:

PCI Express CEM Specification 1.0a x1,

2.5 GT/s signaling

This card can be installed in a PCI Express slot (x1

to x16).

This card cannot be installed in a PCI slot.

Voltage

Power supply voltage: 3.3 V ± 9 %

Current Consumption

Max. 2.5 A
