SDV541-S33 YOKOGAWA

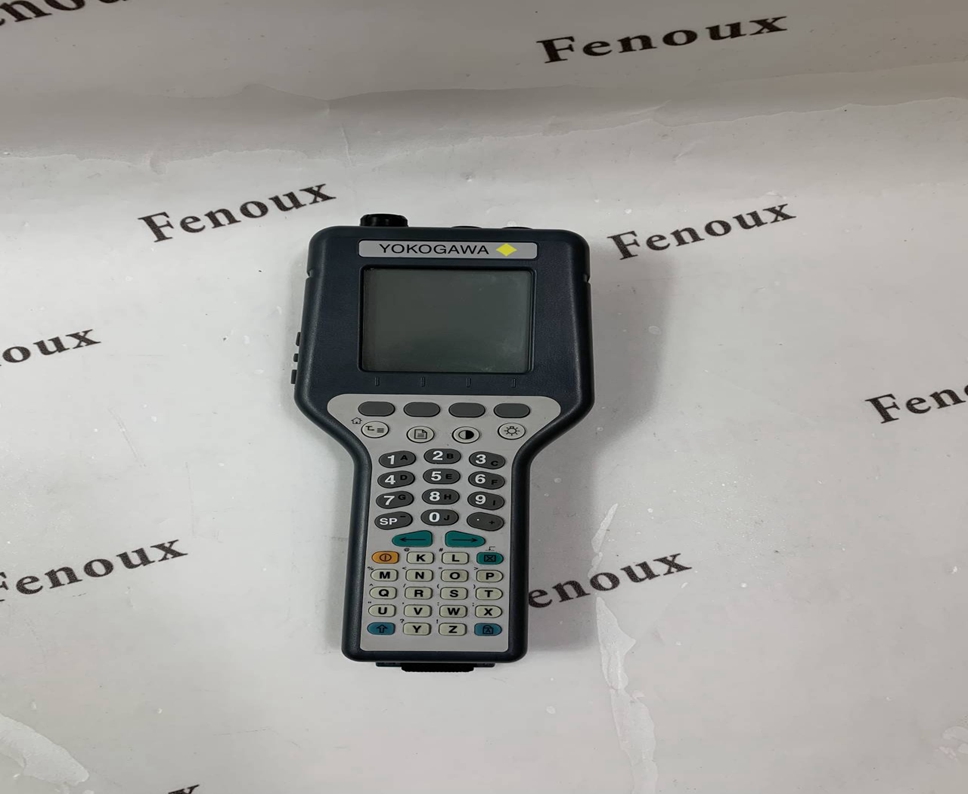

The YHC 4150X HART Communicator is a full function HART Communicator supporting Universal,

Common Practice and Device Specific commands for commissioning, configuration and maintenance

operations. HART field devices can be configured, polled, and trimmed using the YHC with HART

communications.

heart symbol indicates active HART

 communication u

 up arrow indicates SHIFT key ( ) is on

# number sign indicates numeric / symbol entry

 is the active entry mode for all dual functions

 keys

A the letter “A” indicates alpha entry is the active

 entry mode for all dual function keys

 battery symbol indicates YHC under battery

power; filled portion indicates remaining

battery

 electrical plug symbol indicates the AC adapter

 is connected and powering the YHC

BUSY text box replaces either power symbol

when the microprocessor is busy executing a

previously requested task. Do not press keys

when this status symbol is displayed.

The YHC keypad has three basic key types: single

function keys, dual-function keys, and soft keys

with changing definitions.

Single function keys control a dedicated YHC

function.

Dual function keys, through the use of the Alpha

Lock ( ) or Shift ( ) keys, toggle between

two separate functions as needed to facilitate data

entry.

Soft key functions change depending on the

operating mode. Soft key definitions are

displayed at the bottom of the LCD, just above

their respective gray soft keys.

The left hand thumb keys can be used to scroll

up, scroll down, and to select menu items.
