YHC4150X-01 Yokogawa

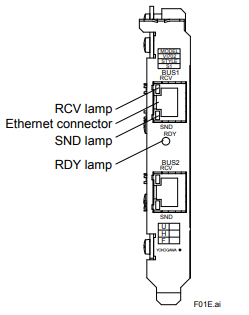

RDY lamp

Lights when it diaghoses the card as normal.

RCV lamp

Lights when it detects signals on a control bus.

SND lamp

Lights when it sends signals to a control bus.

Ethernet connector

Connects a CAT5e (Enhanced Category 5 cable)

 GENERAL

By installing the control bus interface card into the PCI

Express slot of the PC/AT compatible computer, the

computer is connected to Vnet/IP.

 FUNCTION

Interface between the PCI Express and Vnet/IP

 SPECIFICATIONS

For conforming standards of the CENTUM VP

system, see “System Overview (Vnet/IP Edition)” (GS

33K01A10-50E).

Communication Speed

1 Gbps Full Duplex

Connection Specifications

Cable: CAT5e (Enhanced Category 5 cable), UTP

Transmission: 1000BASE-T compliance

Connector: RJ45 connector

Max. distance: 100 m (Distance between VI702 and

Layer 2 switch)

PCI Express Specifications

Applicable revision:

 PCI Express CEM Specification 1.0a

x1, 2.5 GT/s signaling

This card can be installed in a PCI Express slot

(x1 to x16).

This card cannot be installed in a PCI slot.

Voltage

Power supply voltage: 3.3 V ± 9 %

Current Consumption

Max. 2.5 A

Weight

Approx. 0.18 kg

External Dimensions

111.15 x 167.65 (mm)

Full-height, Half-length

Regulartory Compliance

EMC Standards:

[CE Marking]

[C-Tick Marking]

[KC Marking]
