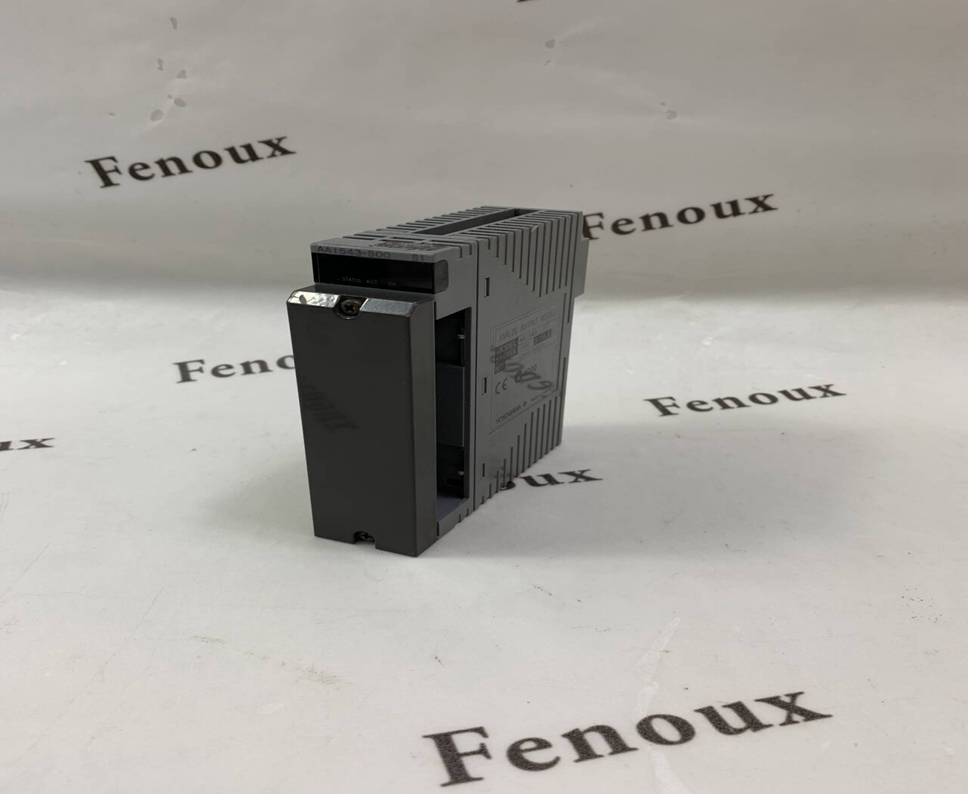

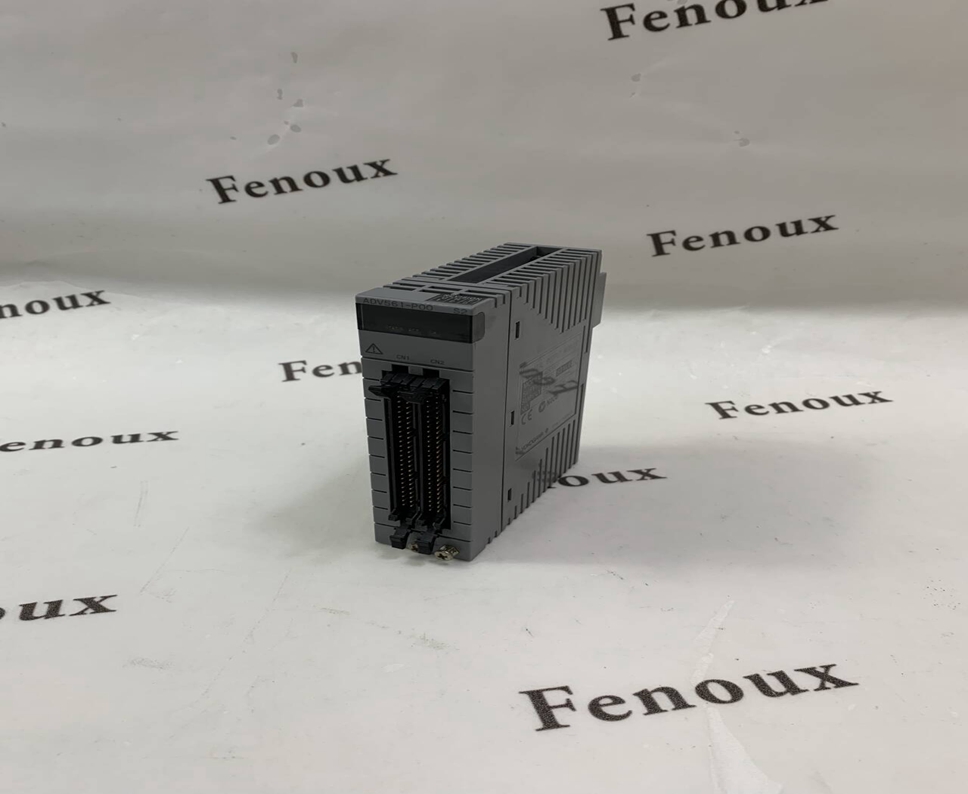

A pressure clamp terminal block is provided for the terminal connection with field devices. To expand terminals via
terminal boards, connect a KS cable adapter to an I/O Module. When using a customer-furnished MIL connector
cable, can directly connect to an I/O Module.
A dedicated terminal block is provided for a dual-redundant configuration.
SIGNAL CABLES
Cables Used
600 V polyvinyl chloride insulated wires (IV); JIS C3307
Polyvinyl chloride insulated wires for electrical apparatus (KIV); JIS C3316
600 V grade heat-resistant polyvinyl chloride insulated wires (HIV); JIS C3317
Heatproof vinyl insulated wires VW-1 (UL1015/UL1007)
Control cables (vinyl insulated vinyl sheath cable) (CVV); JIS C3401
Recommended Cable Thickness
Pressure clamp terminals
Without sleeve: 0.5 to 2 mm2
(AWG20 to 14)
With sleeve: 0.5 to 1.5 mm2
(AWG20 to 16)
M4 crimp terminals
0.5 to 2 mm2
(AWG20 to 14)

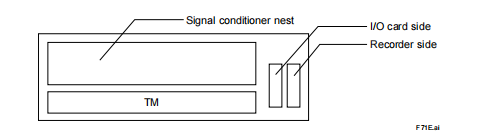

*1: The Reference Junction Compensation Sensor (RJC Sensor) is attached to ET5. Connected it to B and C terminals of
signal conditioner.
*2: Must be wiring resistance of A as same as B.
*3: Must be wiring resistance of A as same as C.
*4: B terminal is used when combined with BARD safety barrier.
*5: In the case of 4 to 20 mA input that requires no transmitter power supply, connect to C-terminal (+) and B-terminal (–)
Input resistance of EA1, EA2, and EA5 is 250 Ω.
For EA7, input resistance is equivalent to 250 Ω (voltage drop is 5 V or less, at 20 mA input).
TRADEMARK
• CENTUM is a registered trademark of Yokogawa Electric Corporation.
• Other product and company names appearing in this document are trademarks or registered trademarks of their
respective holders.
