YOKOGAWA ADV561

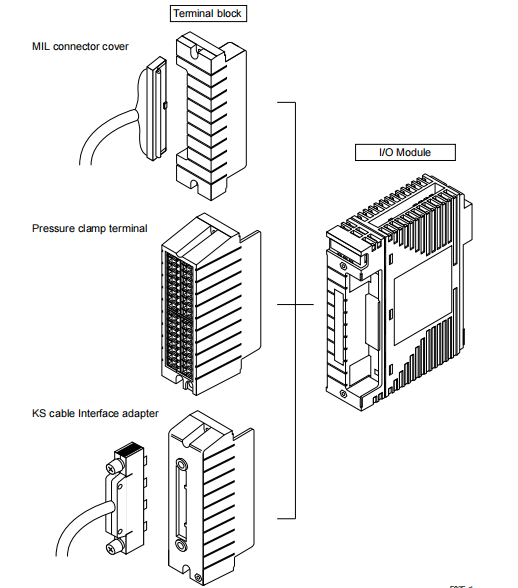

The I/O Modules can be connected to field devices by terminal connection or with a terminal block via a KS cable

interface adapter. A customer-furnished MIL cable can also be used to connect to the I/O Module.

The following explains the terminal blocks as well as the signal wiring that can be paired with the I/O Modules.

Note: One dual-redundant terminal block is used to connect two adjacent I/O Modules.

Note: A cable connector cover (ACCC01) is provided for the connection via a MIL connector.

*1: A cable can be connected directly to the I/O module without using an adapter.

*2: When a MIL connector cable is connected, this can be used only as the mV Input Module.

*3: For the combination of AAI135/AAI835/AAP135; ATK4A; AEA4D, either 2-Wire Transmitter 2-Wire Input (transmitter power

supply type) or 4-Wire Transmitter 2-Wire Input (without transmitter power supply) can be selected for each input channel.

*4: For the combination of AAI135/AAP135; ATI3A; AEA3D and the combination of AAI835; ATB3A; AEA3D, all input channels

are 2-Wire Transmitter 2-Wire Input (transmitter power supply type).

*5: When AAT145 module is connected to MTC terminal board or TETC terminal board, the module is 15-Channel.

Note: One dual-redundant terminal block is used to connect two adjacent I/O Modules.

Note: A cable connector cover (ACCC01) is provided for the connection via a MIL connector.

*1: A cable can be connected directly to the I/O module without using an adapter.

*6: Dual-redundant configuration is possible by external wiring between two ATF9Ss.
