JANCD-EW01 DF8201181 Yaskawa

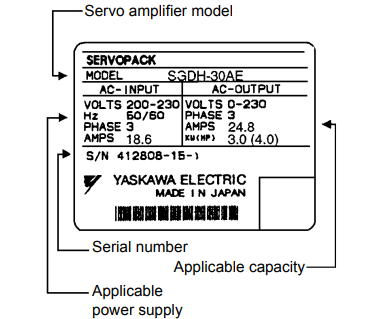

Check the 5-digit version number indicated on the front side of the servo amplifer. The

first two digits indicate the hardware version, and the last two digits indicate the software

version. Hardware version numbers higher than 33 and/or software version numbers

higher than 32 signify upgraded products.

Description:

SGM†H servomotors can be installed either horizontally or vertically.

The service life of the servomotor can be shortened or unexpected problems might occur if

it is installed incorrectly or in an inappropriate location. Follow these installation

instructions carefully.

• Do not connect the servomotor directly

to a commercial power line. This will

damage the servomotor.

The servomotor cannot operate without the

proper servo amplifier.

Note: Prior to Installation:The end of the motor shaft is coated with anti-corrosive paint. Before

 installing, carefully remove all of the paint using a cloth moistened with paint thinner. Avoid getting

thinner on other parts of the servomotor.

Store the servomotor within the following temperature range as long as it is stored

with the power cable disconnected.

-20 to 60°C

SGM†H servomotors are designed for indoor use. Install the servomotor in

environments that satisfy the following conditions.

• Free of corrosive or explosive gases.

• Well-ventilated and free of dust and moisture.

• Ambient temperature of 0° to 40°C.

• Relative humidity (r.h.) of 20 to 80% with no condensation.

• Accessible for inspection and cleaning.
