JANCD-MM09-03 YASKAWA

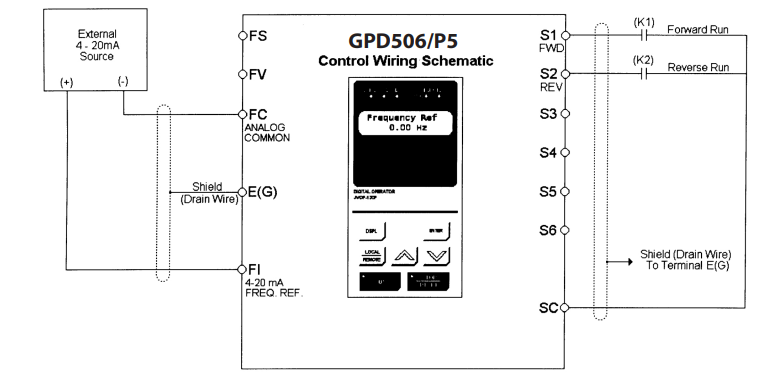

This configuration is used when the start & stop signals and the frequency reference come from a remote

source, such as a PLC. It can also be used with a maintained switch when it is desirable to have the drive

restart on restoration of power. It should not be used where safety of attending personnel might be threatened

by a restart.

Description:

When the drive is set up with the sequence and the reference coming from the digital operator, it is in “Local”

control. Local control is often used during startup to verify motor operation, rotation, etc. The drive can be

temporarily placed in “Local” control simply by pressing the LOCAL / REMOTE key. When the drive is in

“Local” control, the SEQ and REF LEDs are off. If power is removed and then restored, the drive will come up

in the “Remote” mode (SEQ and REF LEDs are on).

The drive can be programmed so that even if power is lost, the drive will come up in the local mode (see Table

2 below).

OPERATION:

• The frequency reference is programmed into the “Frequency Reference” quick start display.

• The drive can be started by pressing the RUN key on the digital operator.

• The drive can be stopped by pressing the STOP key on the digital operator.

• The direction of the motor can be changed regardless of motor speed by changing the “Forward/Reverse”

quick start display.

Parameter Display Description

n001 Password

3

Allows access to all parameters in the drive.

n002 Oper Mode Select

SEQ=OPR REF=OPR

 This parameter sets the drives sequence (start/stop) and

reference (motor speed) to come from the digital operator (local).

Quick Start

Display

Motor Rated FLA

 X.X A

Enter the motor’s full load amps (as shown on the motor

nameplate).

Quick Start

Display

Frequency Ref

X.X Hz

Enter into this parameter how fast you want the motor to go.

Quick Start

Display

Forward / Reverse

For

With this display, the motor direction can be changed regardless of

motor speed.
