JANCD-MTU01 DF9200471-E0 Yaskawa

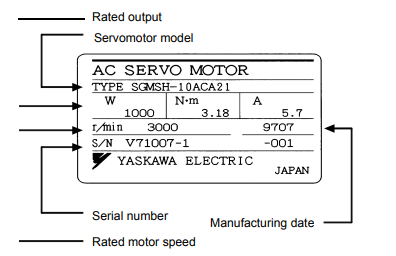

Check the model numbers marked on

the nameplates of the servomotor and

servo amplifier. (Refer to the descriptions

 of model numbers on following

pages)

Description:

• Connect the ground terminal to a class 3 ground (100Ω or less).

Improper grounding may result in electric shock or fire.

• Required for 7.5kW amplifiers:

Use of Yaskawa kit Number JZSP-CKT75 for wiring the power input and output terminals, or equivalent

UL listed closed-loop ring terminals designed to accept 4 AWG wires.

• Required for 200V, 11kW and 15kW amplifiers:

Use of Yaskawa kit number JZSP-CKT75 for wiring the power input and output terminals of the SGDH1AAE,

and JZSP-CKT1E for the SGDH-1EAE, or equivalent UL listed closed-loop ring terminal to accept 4

AWG and 2 AWG wires respectively.

• Required for 400V, 6.0kW and 7.5kW amplifiers:

Use of Yaskawa kit Number JZSP-CKT75DE for wiring the power input and output terminals, or

 equivalent UL listed closed-loop ring terminals designed to accept 8 AWG wires.

• Required for 400V, 11kW amplifiers:

Use of Yaskawa kit Number JZSP-CKT1ADE for wiring the power input and output terminals, or

equivalent UL listed closed-loop ring terminals designed to accept 8 AWG wires.

• Required for 400V, 15kW amplifiers:

Use of Yaskawa kit Number JZSP-CKT1EDE for wiring the power input and output terminals, or

equivalent UL listed closed-loop ring terminals designed to accept 6 AWG wires.

• Do not connect a three-phase power supply to the U, V, or W output terminals.

Doing so may result in injury or fire.

• Securely fasten the power supply terminal screws and motor output terminal screws.

Not doing so may result in fire.
