JPAC-C051 YASKAWA

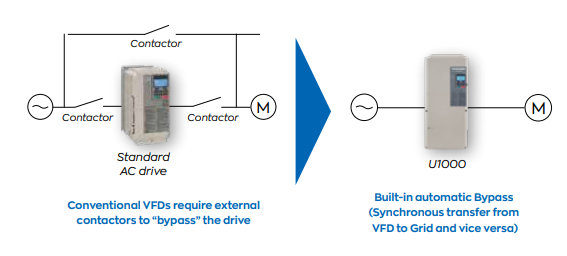

The U1000 has a built-in bypass function. Whenever an application is

matching the grid frequency, the U1000 can synchronize the motor to

grid frequency. This built-in bypass function eliminates switching losses

and any drive generated current harmonics and electrical motor noise.

Description:

The U1000 is a very compact AC-to-AC drive, which

means there is no DC bus inside. This innovative design

does not need any braking resistors which wastes the

regenerative energy in heat. Now, the regenerative

energy can be used by other loads on the same power

grid, saving total energy cost and consumption while

also reducing the panel cooling system requirements.

• Energy savings

• Less heat generation, reduced need for ventilation

• No braking resistor - greatly reduced risk of fire

• Less maintenance

• Fewer parts

• Compact design

Conventional dynamic braking solutions with braking transistors and braking resistors need lots of space and

cooling. The U1000 matrix drive is a simple 3 wire in, 3 wire out configuration. This advantage in design reduces the

footprint of your application, saving about 50 % on wiring and weight while also saving 100 % of wasted energy and

eliminating the risk of fire by overheating the braking resistors.
