ABB IMASI13

NOTE: The IMASI13 module is fully compatible with existing INFI 90® OPEN

Strategic Enterprise Management Systems.

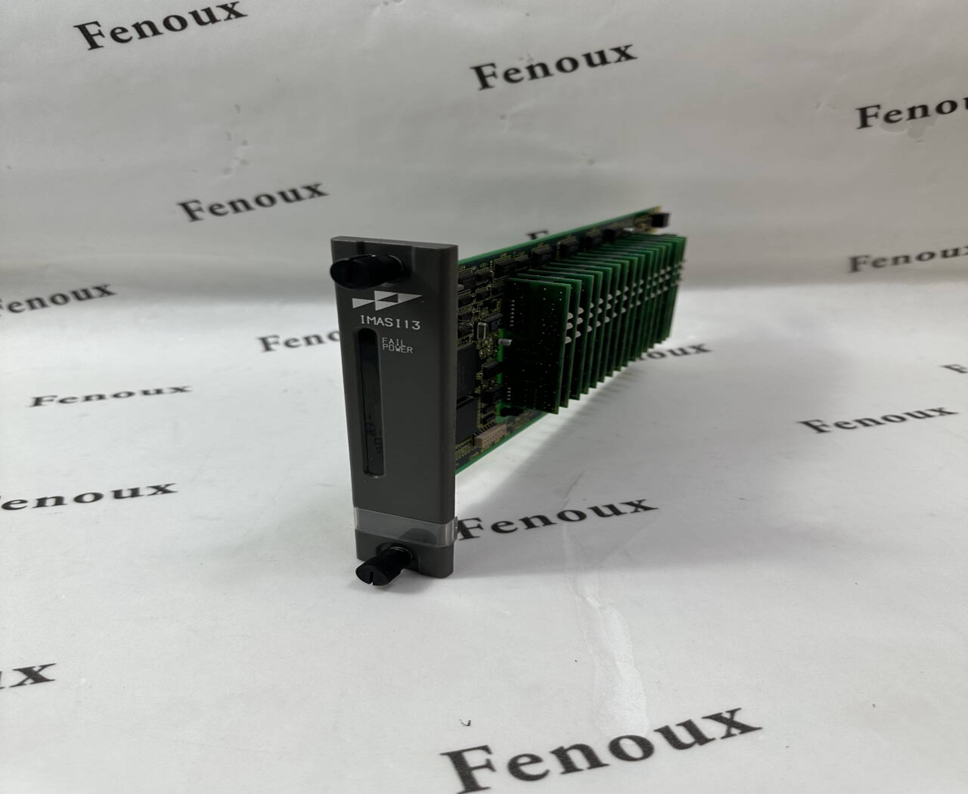

The IMASI13 Analog Input Module is a Harmony rack I/O

module that is part of the Symphony Enterprise Management

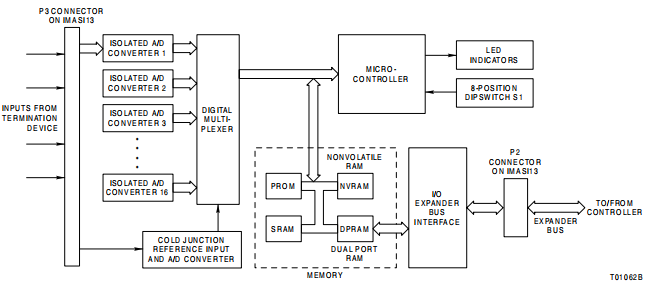

and Control System. It has 16 analog input channels that

interface isolated thermocouple, millivolt, RTD, and high level

analog signals to a controller with an analog-to-digital conversion resolution of 24 bits. Each channel has its own analog-to-digital converter and can be independently configured to

handle the desired input type. These analog inputs are used by

a controller to monitor and control a process.

The IMASI13 module can be used as a direct replacement for

the IMASI03 module with only minor modifications. Changes

to specification S11 in function code 216 are required to

handle the differences in resolution choices. Verification of

power supply sizing calculations and system current requirements could be necessary because of the change in power

consumption.

This instruction explains the IMASI13 module specifications

and operation. It details the procedures necessary to complete

setup, installation, maintenance, troubleshooting, and

replacement of the module.
