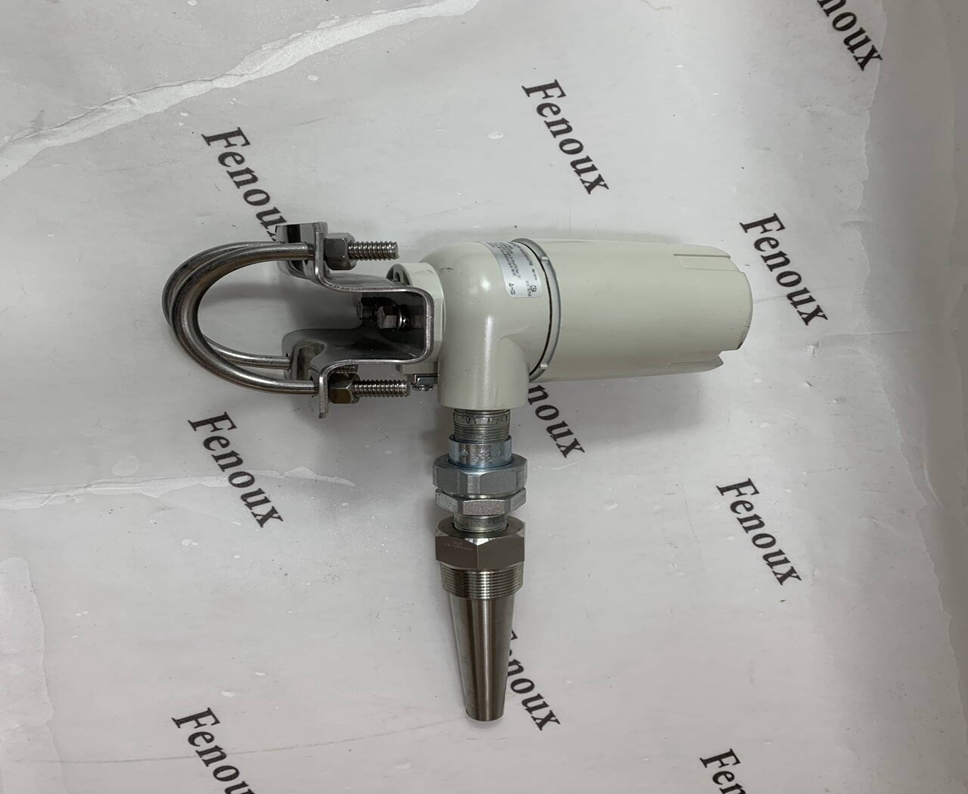

ABB TTF300

Ambient temperature

• Standard: −40 to 85 °C (−40 to 185 °F)

• Optional: −50 to 85 °C (−58 to 185 °F)

• Limited temperature range for explosion-proof design:

see relevant certificate

Transport / storage temperature

−50 to 85 °C (−58 to 185 °F)

Climate class in accordance with DIN EN 60654-1

Cx −40 to 85 °C (−40 to 185 °F) at 5 to 95 % relative air

humidity

• Thread (selectable) 2 × M20 × 1.5 / 2 × ½ in NPT /

2 × ¾ in NPT (using reducing piece),

• Ground screw external 6 mm2, M5 internal 2 × 2.5 mm2, M4

terminals for lines up to 2.5 mm2 and handheld terminal

interface

Plastic cable gland 2 × M20 1.5:

• Cable outside diameter 6 to 12 mm (0.24 to 0.47 in),

Ex: 5 to 10 mm (0.2 to 0.39 in)

• Temperature range −30 to 80 °C (−22 to 176 °F),

Ex: −20 to 80 °C (−4 to 176 °F)

• For Non-Ex:

Polyamide gray

• For intrinsically safe design, intrinsic safety,

non-incendive and dust-explosion protection:

Polyamide blue

Metal cable gland (2 × M20 x 1.5 / 2 × ½ in NPT):

• Flameproof (enclosure), explosionproof

• Cable outside diameter 3.2 to 8.7 mm (0.13 to 0.34 in)

• Temperature range: −50 to 85 °C (−58 to 185 °F)

• Additional cable outside diameters: upon request
