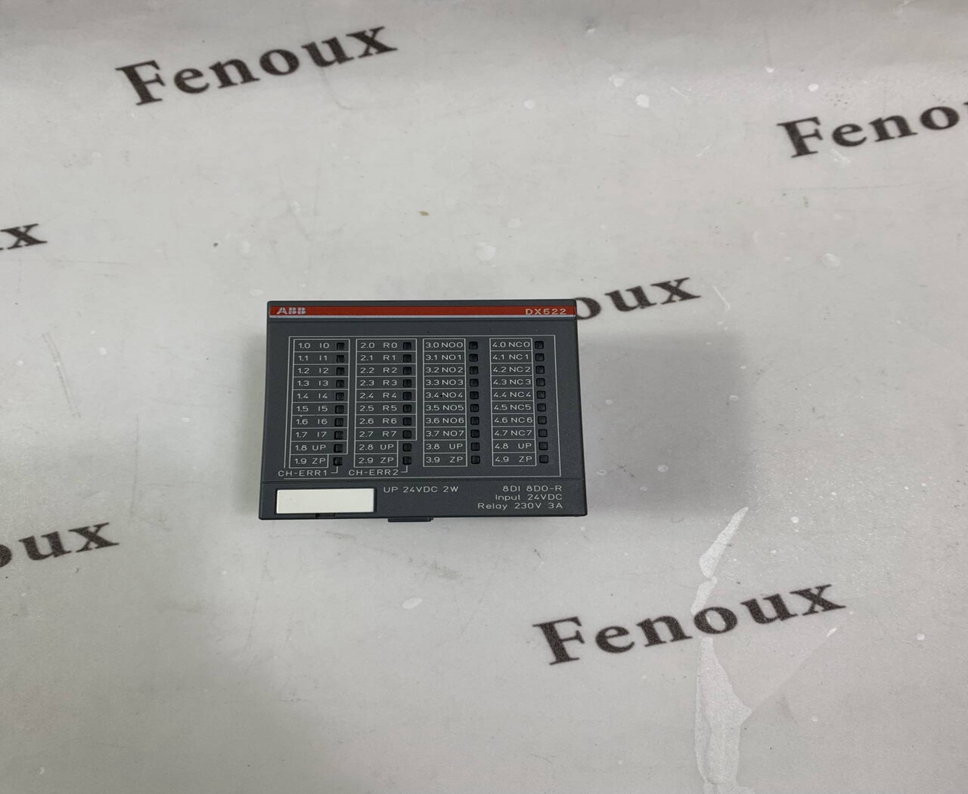

DX522 1SAP245200R0001 ABB

The system data of AC500 and S500 are applicable to the standard version Ä Chapter 4 “System

data AC500” on page 4.

The system data of AC500-XC are applicable to the XC version Ä Chapter 5 “System data AC500-

XC” on page 9.

Only additional details are therefore documented below.

The technical data are also applicable to the XC version.

NOTICE!

Risk of damaging the PLC due to improper voltage levels!

– Never exceed the maximum tolerance values for process and supply voltages.

– Never fall below the minimum tolerance values for process and supply voltages.

Observe the system data Ä Chapter 4 “System data AC500” on page 4 and the

technical data of the module used.

NOTICE!

Improper voltage level or frequency range which cause damage of AC inputs:

– AC voltage above 264 V

– Frenquency below 47 Hz or above 62.4 Hz

NOTICE!

Improper connection leads cause overtemperature on terminals.

PLC modules may be destroyed by using wrong cable type, wire size and cable

temperature classification.

Operating 0 °C ... +60 °C: Horizontal mounting of modules.

0 °C ... +40 °C: Vertical mounting of modules.

Output load reduced to 50 % per group.

Storage -40 °C ... +70 °C

Transport -40 °C ... +70 °C

Humidity Max. 95 %, without condensation
