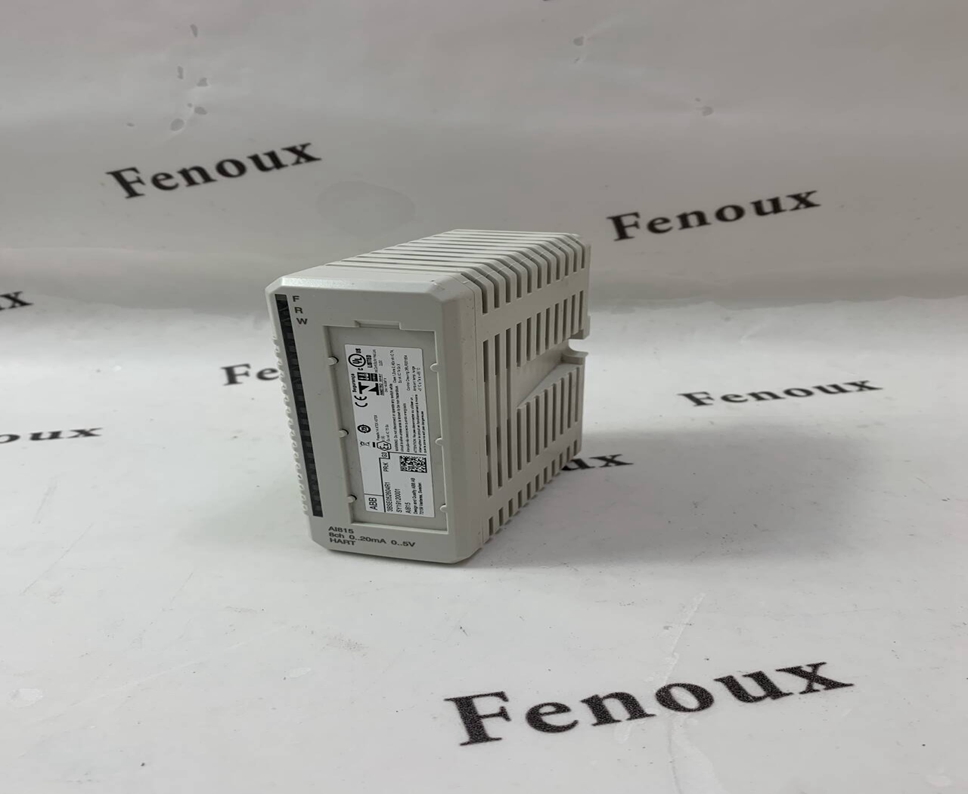

ABB AI815 analog input module

Product Description

The ABB AI815 is an analog input module that is part of the ABB Ability™ System 800xA® distributed

control system. It is used to convert analog signals from field devices into digital signals that can be

processed by the control system. The AI815 has 8 channels, each of which can be configured for voltage

or current input. The module also has a built-in HART modem that can be used to communicate with

HART-compatible devices.

Description:

Product Parameters

• Number of channels: 8

• Input type: Voltage or current

• Input range: 0-20 mA, 4-20 mA, 0-5 V, or 1-5 V

• Accuracy: 0.1%

• Resolution: 12 bits

• Isolation: 1500 VDC

• Operating temperature: -40 to 85 degrees Celsius

• Storage temperature: -55 to 125 degrees Celsius

• Dimensions: 45 x 119 x 102 mm

• Weight: 0.23 kg

Product Advantages

• High accuracy and resolution

• Wide input range

• Built-in HART modem

• Compact and lightweight

Precautions

• The AI815 should be installed by a qualified technician.

• The module should be protected from moisture and dust.

• The module should not be operated in an explosive atmosphere.

Product Applications

The AI815 is used in a variety of applications, including:

• Power generation

• Oil and gas

• Pulp and paper

• Mining

• Water treatment
