Brand: ABB
Model number:CM-IWN-DC
Warranty: 12 months
Lead Time:3-day working day
Country of origin: USA Price: Please contact us
Product weight:0.2kg
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service

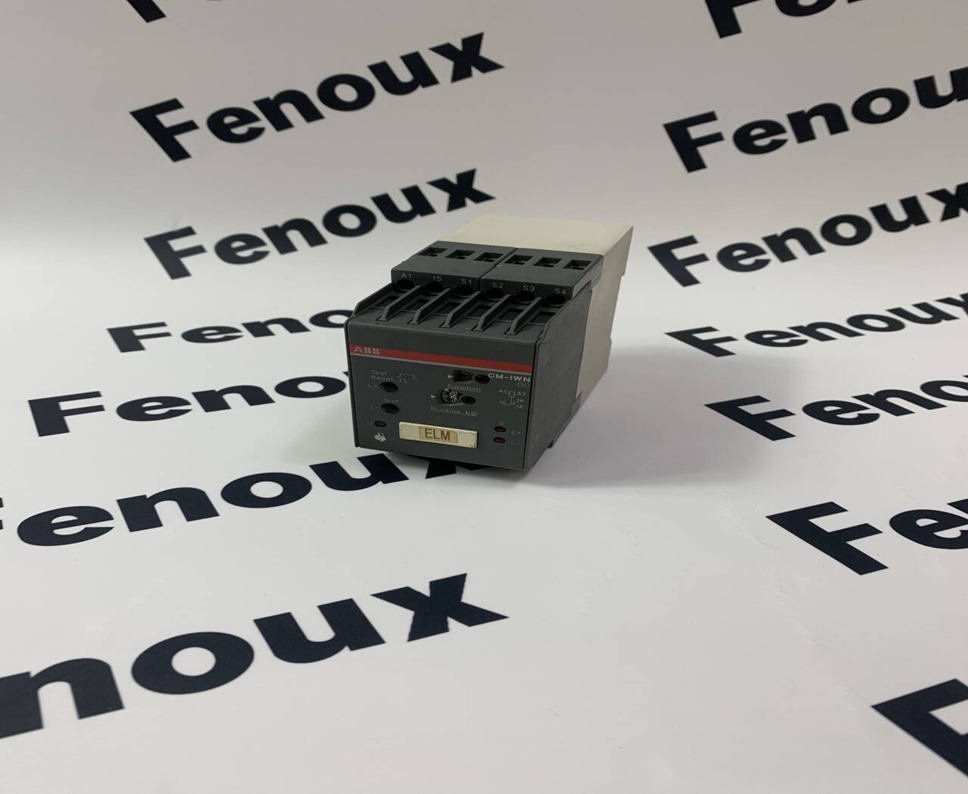

ABB CM-IWN-DC Monitoring relay
INQUIRE NOW
Products Name: ABB CM-IWN-DC
PRODUCT DESCRIPTION
What is the CM-IWN-DC?The ABB CM-IWN-DC is a specialized monitoring relay designed for insulation resistance monitoring in ungrounded DC systems. It plays a crucial role in safeguarding electrical
equipment by detecting insulation failures before they escalate into more serious problems.
Key Features and Benefits:
Insulation Monitoring: Continuously monitors the insulation resistance in DC systems to detect potential faults.
Early Fault Detection: Quickly identifies insulation failures, preventing downtime and damage.
Adjustable Threshold: Allows customization of the response threshold to meet specific application requirements.
Reliable Operation: Built to operate reliably in demanding industrial environments.
Easy Installation: Simple to install and configure, reducing installation time.
LED Indicators: Provide clear visual indication of the device's status and any detected faults.
SPDT Relay Output: Enables integration with other control systems or signaling devices.
Technical Specifications:
Voltage: Typically operates on DC voltages ranging from 24V to 240V.
Response Threshold: Adjustable from 10kΩ to 110kΩ.
Output: SPDT relay for alarm or control functions.
Mounting: DIN rail mounting for easy installation.
Environmental Conditions: Designed to withstand a wide range of operating temperatures and humidity levels.
Applications:
Industrial Automation: Monitoring insulation in DC power supplies, control systems, and other electrical equipment.
Renewable Energy: Protecting DC components in solar and wind power systems.
Transportation: Ensuring the safety of DC systems in electric vehicles and railway applications.
Precautions:
Correct Wiring: Ensure that the device is wired correctly according to the manufacturer's instructions.
Environmental Conditions: Protect the device from excessive heat, humidity, and mechanical stress.
Regular Inspection: Periodically inspect the device for signs of damage or wear.
Calibration: Calibrate the device regularly to maintain accuracy.
Why is it Important?Insulation failures can lead to equipment damage, downtime, and safety hazards. The CM-IWN-DC helps prevent these issues by providing early warning of insulation degradation.
By detecting faults promptly, it can help to minimize the impact of failures and reduce maintenance costs.
Want to learn more?For more detailed information, I recommend referring to the official ABB product documentation. You can typically find this on the ABB website or by searching for the product
number (CM-IWN-DC).
Would you like to know more about specific aspects of the CM-IWN-DC, such as its installation, configuration, or troubleshooting?
