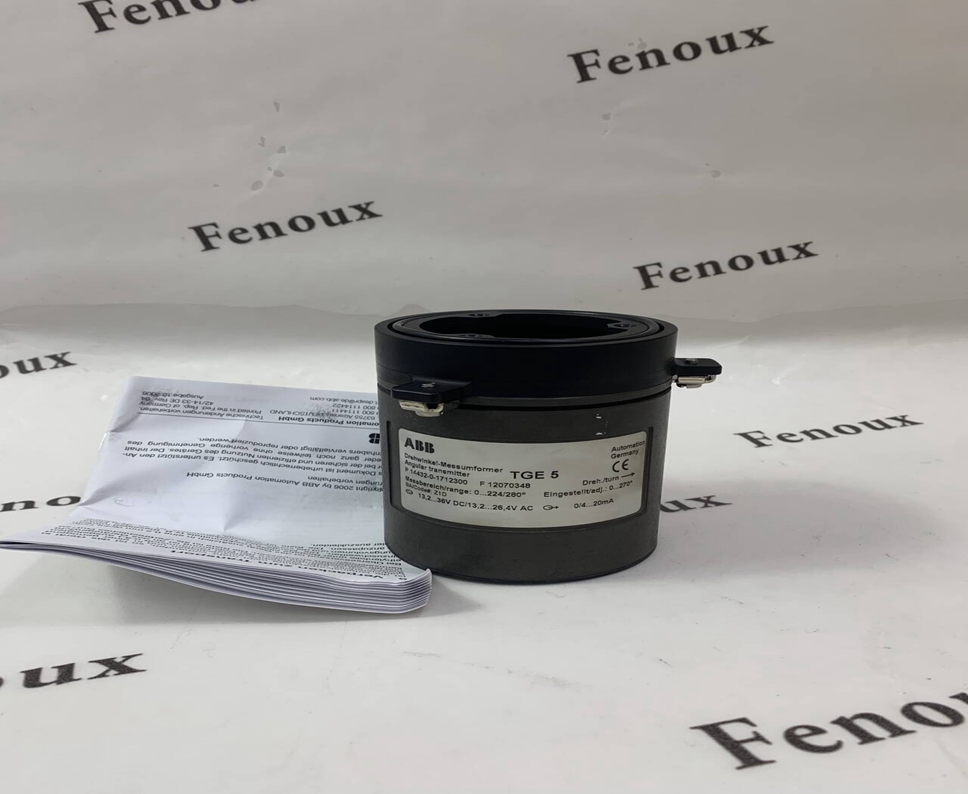

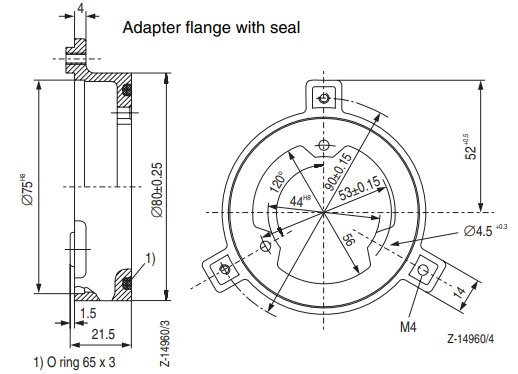

The TGE 5 (-Ex) transmitter may be installed in any chosen position
fixed to the rotational angle sensor. Care must be taken that the potentiometer can be accessed for balancing purposes
The TGE 5 transmitter must be kept within the ambient temperature
range -25...+80 °C.
The TGE 5-Ex transmitter is approved for intrinsic safety classes EEx ib
IIC T6 and EEx ib IIC T4.
Mounting in hazardous areas of Zones 1 and 2 is possible with
– Temperature class T6:
permissible range of ambient temperature -25 °C...+40 °C
– Temperature class T4:
permissible range of ambient temperature -25 °C...+70 °C
NOTICE
The transmitter may only be operated at safety-low voltages with
electrical isolation against higher mains voltage.
The transmitter will not deliver an output signal if the polarity of the
supply voltage is incorrect.
In models without electrical isolation, the supply and output current circuits are provided with a common minus potential through
internal connection (terminals 2 and 4).
The requirements of DIN VDE 0100 must be met when selecting line
material and laying measuring and output signal lines.
DANGER
The provisions of DIN EN 60079-14 (DIN VDE 0165 part 1) must additionally be adhered to when connecting the TGE 5-Ex.
Connections:
– Screw terminals for 2.5 mm2 wire
– Han 7D connector (not for Ex version)
Connection of screw terminals
1. Determine the correct power supply for the unit from the rating
plate.
2. Remove the screw using a screwdriver (blade width 5 mm) and take
off the housing cover.
3. Secure the wires (max. cross section 2.5 mm2) in the screw terminals with a screwdriver (blade width 3 mm).
4. Replace the housing cover and fasten with screws.
The TGE 5-Ex transmitter must be supplied with power through a current
circuit which is certified as intrinsically safe (EEx ib IIC). See Fig. 1-7.
