ABB TMAXT1N160

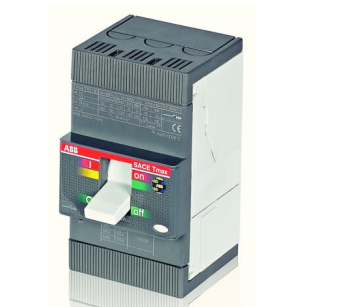

ABB TMAXT1N160 Molded Case Circuit Breaker
Brand： ABB
Model number：TMAXT1N160
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.2kg
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
ABB TMAXT1N160 Molded Case Circuit Breaker
General Information
Extended Product Type
Product iD
EAN
Catalog Description
Long Description
T1N 160 TMD125-1250 3pF FC Cu(10ù70mm2)
1SDA050923R1
8015644513351
T1N 160 TMD125-1250 3pF FC Cu(170mm2)
C.BREAKER TMAX TIN 160 FIXED THREE-POLE WITH FRONT TERMINALS FORCABLE Cu 70mm2 AND THERMOMAGNETIC RELEASE TMD R 125-1250 A
Additional Information
8000 cycle
120 cycles per hour
Electrical Durability
25000 cycle
240 cycles per hour
Mechanical Durability
3 Number of Poles
at Rated Operating Conditions per Pole 10,7 W Power Loss
SACE Tmax T Product Main Type
Moulded Case Circuit Breaker Product Name
CB Product Type
125 A Rated Current (In
)
8 kV Rated Impulse Withstand
Voltage (Uimp)
800 V Rated Insulation Voltage
(Ui
)
690 V AC
500 V DC
Rated Operational Voltage
(220 V AC) 37,5 kA
(230 V AC) 37,5 kA
(380 V AC) 27 kA
(400 V AC) 27 kA
(415 V AC) 27 kA
(440 V AC) 11 kA
(500 V AC) 7,5 kA
(690 V AC) 3 kA
Rated Service ShortCircuit Breaking Capacity
(Ics)
(220 V AC) 5 kA
(230 V AC) 5 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 22 kA
(500 V AC) 15 kA
(690 V AC) 6 kA
(250 V DC) 2 Poles in Series 36 kA
(250 V DC) 3 Poles in Series 40 kA
(500 V DC) 3 Poles in Series 36 kA
Rated Ultimate ShortCircuit Breaking Capacity
(Icu)
160 A
