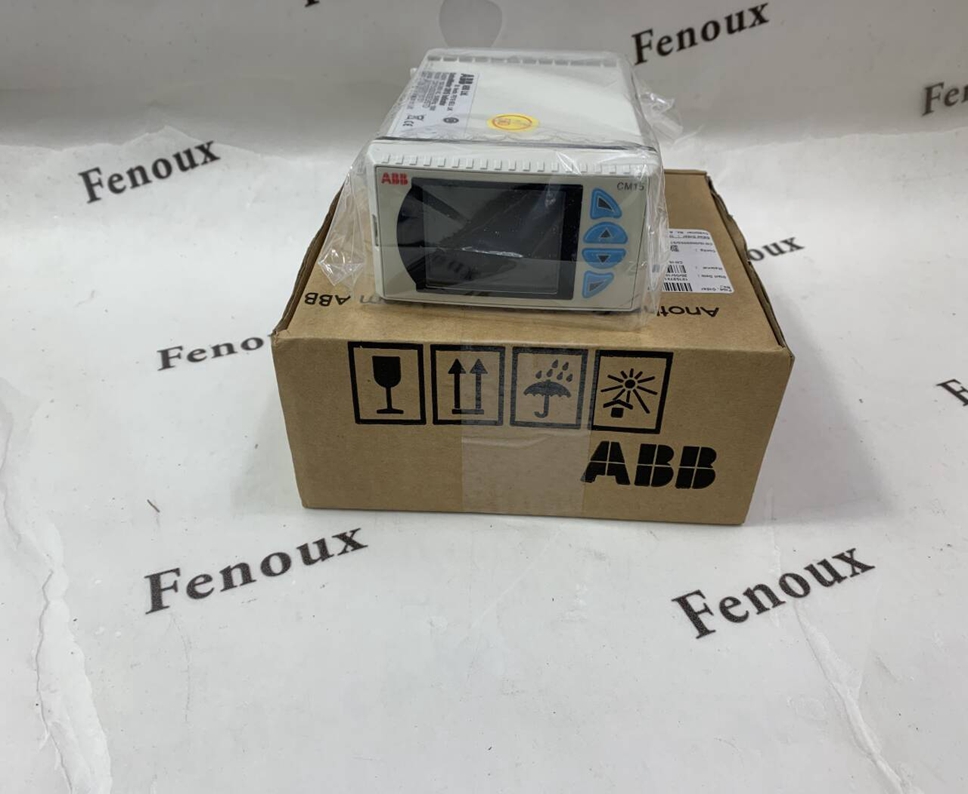

CM15/000S0E0/STD ABB

Product Description

The ABB CM15/000S0E0/STD is a 1/8 DIN universal process indicator. It is a panel-mount

instrument that displays process variables such as temperature, pressure, flow, and level.

The CM15/000S0E0/STD has a 50 x 97 mm (2 x 3.8 in) TFT display with a resolution of

320 x 240 pixels. The display can be configured to show one or two process variables,

as well as alarm status and other information. The CM15/000S0E0/STD has two analog

inputs, two analog outputs, and two relay outputs. The analog inputs can be used to

measure process variables such as temperature, pressure, flow, and level. The analog

outputs can be used to control process variables such as temperature, pressure, flow,

and level. The relay outputs can be used to alarm or control process variables.

Description:

Product Parameters

• Input voltage: 100-240 VAC

• Input frequency: 47-63 Hz

• Power consumption: 10 VA

• Display size: 50 x 97 mm (2 x 3.8 in)

• Display resolution: 320 x 240 pixels

• Accuracy: 0.1%

• Resolution: 12 bits

• Isolation: 1500 VDC

• Operating temperature: -40 to 85 degrees Celsius

• Storage temperature: -55 to 125 degrees Celsius

• Dimensions: 96 x 48 x 24 mm (3.8 x 1.9 x 0.9 in)

• Weight: 0.2 kg (0.44 lb)

Product Advantages

• High accuracy and resolution

• Wide input voltage range

• Low power consumption

• Compact and lightweight

• Easy to install and use

Precautions

• The CM15/000S0E0/STD should be installed by a qualified technician.

• The instrument should be protected from moisture and dust.

• The instrument should not be operated in an explosive atmosphere.

Product Applications

The CM15/000S0E0/STD is used in a variety of applications, including:

• Power generation

• Oil and gas

• Pulp and paper

• Mining

• Water treatment
