F204 2CSF204001R1250 ABB Feeder Protection and Control

INQUIRE NOW

Products Name: F204 2CSF204001R1250 ABB Feeder Protection and Control

PRODUCT DESCRIPTION

Brand:  ABB

Model number:F204  2CSF204001R1250

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.33Kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

General Information

Extended Product Type F204 B-40/0.3

Product ID 2CSF204568R3400

EAN 8012542342359

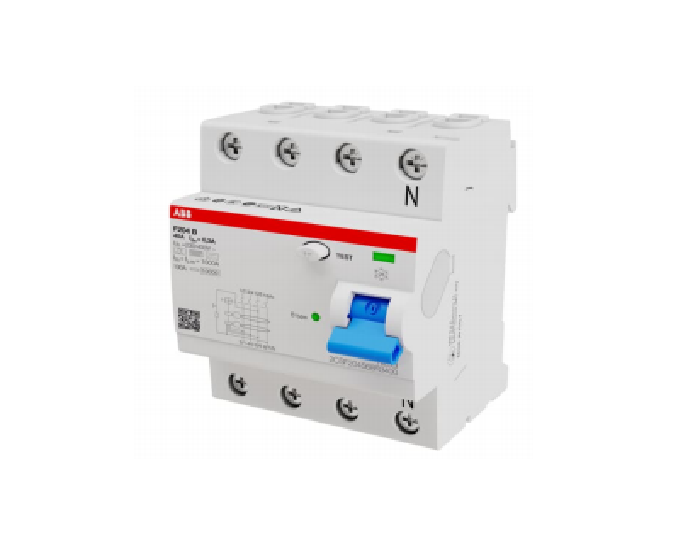

Catalog Description F204 B-40/0.3 Residual Current Circuit Breaker

Long Description

The RCCBs F200 series assures protection to people and installations against fault current

to earth. This product is manufactured according to international IEC standards, for the

markets where it is required.

PRODUCT-DETAILS

Technical

IEC/EN 61008 Standards

B type Type of Residual Current

230/400 V Rated Voltage (Ur

)

230 / 400 V AC Rated Operational Voltage

440 V Rated Insulation Voltage

(Ui

)

170-253 V AC Test Voltage (Ut)

4 kV Rated Impulse Withstand

Voltage (Uimp)

2500 V Dielectric Test Voltage

AC Input Voltage Type

40 A Rated Current (In

)

300 mA Rated Residual Current

1 kA Rated Residual Breaking

Capacity (IΔm)

10 kA Rated Conditional Short￾Circuit Current (Inc)

I (max, 8 / 20 µs) 3000 A Impulse Current

3 kA Maximum Surge Current

50 / 60 Hz Rated Frequency (f)

6.95 W Power Loss

10000 cycle Electrical Endurance

20000 cycle Mechanical Endurance

4 Number of Poles

4 Number of Modular

Spacings per DIN Rail

Instantaneous (APR High Immunity) Operating Characteristic

III Overvoltage Category

Right Position of Neutral

Terminals

2.8 N·m Tightening Torque

10 ms Delay Time (τ)

Auxiliary contact, Signal contact/auxiliary contact, Shunt trip, Undervoltage

release, Overvoltage release, Motor operating device, Auto reclosing unit

Accessory Type

on DIN rail EN 60715 (35mm) by means of mounting clip Mounting Type

Failsafe Bi-directional Cylinder-lift Terminal Screw Terminal Type

None Options Provided

Any Mounting Position

Yes Accessories Available

0 Number of Batteries

25 mm² Cable Size

Busbar 10 mm²

Flexible 1 ... 25 mm²

Stranded 1 ... 25 mm²

Connecting Capacity

1 - Solid-Core 1 ... 25 mm² Rated Cross-Section

12 mm Wire Stripping Length

Screw Terminals Terminal Type

Environmental

Operation -25 ... +70 °C Ambient Air Temperature

Housing IPX4

Terminals IP2X

Degree of Protection

3 Pollution Degree

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %

Environmental Conditions

0.1 mm or 1 g - 20 cycles at 5…150…5 Hz Resistance to Vibrations

acc. to IEC 60068-2-6

25g 2 shocks 13 ms Resistance to Shock acc.

to IEC 60068-2-27

Dimensions

4 Width in Number of

Modular Spacings

70 mm Product Net Width

85 mm Product Net Height

69 mm Product Net Depth /
