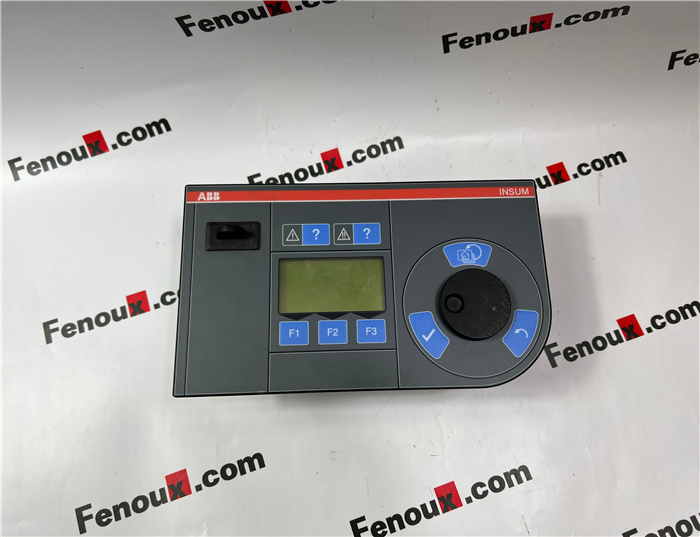

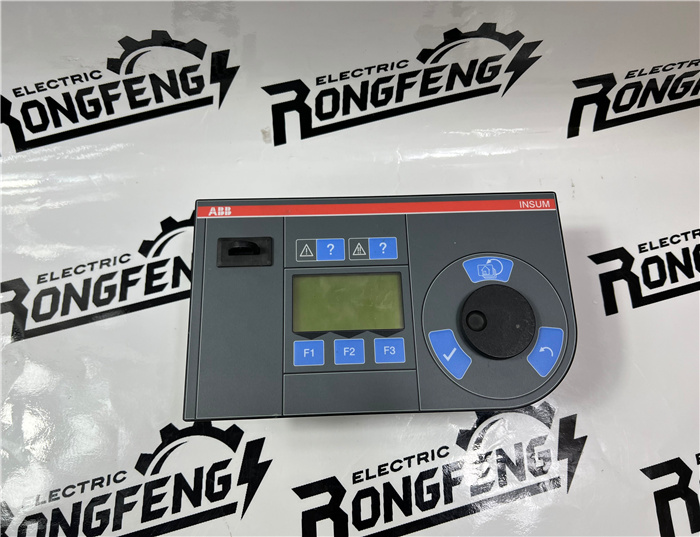

Products Name: INSUM 1TGB302004R0002 ABB Feeder Protection and Control
PRODUCT DESCRIPTION
Brand: ABB
Model number: INSUM 1TGB302004R0002
Colour:new
Warranty: 12 months
Lead Time:3-day working day
Country of origin: USA Price: Please contact us
Product weight:1.12Kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
The information in this document is subject to change without notice and should not be
construed as a commitment by ABB Schaltanlagentechnik GmbH. ABB Schaltanlagentechnik
GmbH assumes no responsibility for any errors that may appear in this document.
In no event shall ABB Schaltanlagentechnik GmbH be liable for direct, indirect, special,
incidental, or consequential damages of any nature or kind arising from the use of this
document, nor shall ABB Schaltanlagentechnik GmbH be liable for incidental or consequential
damages arising from use of any software or hardware described in this document.
This document and parts thereof must not be reproduced or copied without ABB
Schaltanlagentechnik GmbH’s written permission, and the contents thereof must not be
imparted to a third party nor be used for any unauthorized purpose. Permission to translate the
document shall be obtained from ABB Schaltanlagentechnik GmbH. The translated document
shall be sent to ABB Schaltanlagentechnik GmbH together with the confirmation that the
content of the document is the same.
The software described in this document is furnished under a license and may be used,
copied, or disclosed only in accordance with the terms of such license.
This manual describes the PROFIBUS DP Gateway communication interface implemented in
INSUM system according to standard EN 50170. The PROFIBUS DP interface in INSUM System provides
interface possibilities to the Process Control Systems or any other external systems that supports
PROFIBUS.
The PROFIBUS DP is a Master-Slave protocol wherein the Gateway is always a PROFIBUS slave in all
configurations. The master station controls the traffic on the bus, in this case, by PCS or PLC system. The
PCS system cyclically reads the input information from the INSUM PROFIBUS Gateway and cyclically

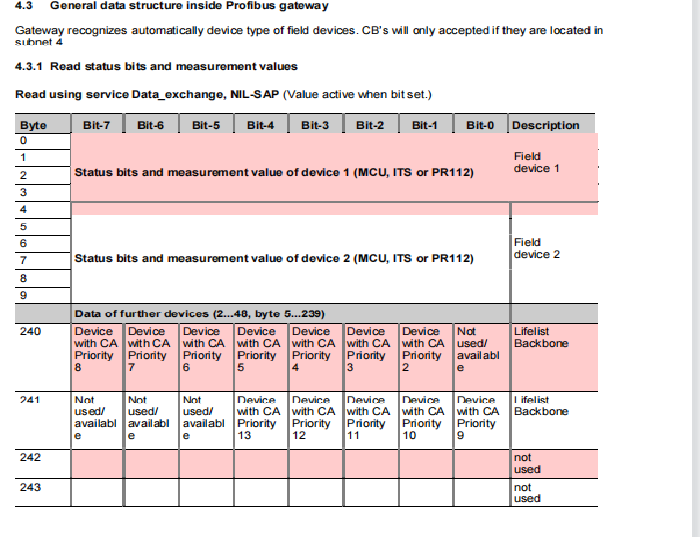

writes the output information to the Gateway. Being a standard PROFIBUS DP slave the Gateway supports
49 bytes of input information and 244 bytes of output information.
1.2 Objective
This manual provides detailed information on implementation of PROFIBUS DP interface in INSUM
Gateway. It is primarily intended to give slave configuration information to the PCS application programmer
and to provide help during installation and commissioning of the PCS-INSUM PROFIBUS DP interface.
The knowledge of PROFIBUS DP field bus and DCS programming is an added advantage to the reader of
this manual.
1.3 Product Highlights
The Gateway provides 24 bits of binary information and one analogue current information to the PCS.
The Gateway communicates to the master station at a communication speed of 1.5MB/s.
One Gateway supports communication to 48 Field Units. The switchgear unit supports 2 gateways i.e.
96 Field Units per switchgear unit in total.
1.4 LON Achronyms and Definitions
It is must for the user of this manual to have understanding on the following LON terminology.
LON
Local Operating Network. LON is used as shortening for LON Network.
LonTalk protocol
Communication protocol used in LON networks.
LON network
A communication network built using LON technology, including e.g. Neuron chip and LonTalk protocol.
Network variable (NV)
A data item in LonT 2001 ABB Schaltanlagentechnik GmbH, Germany
