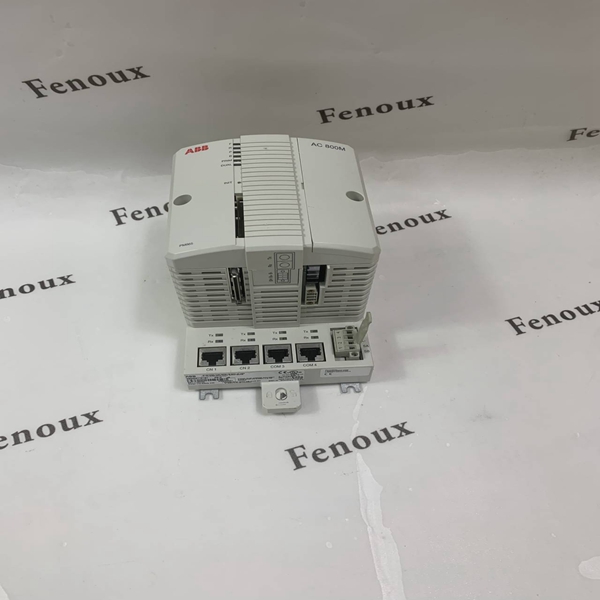

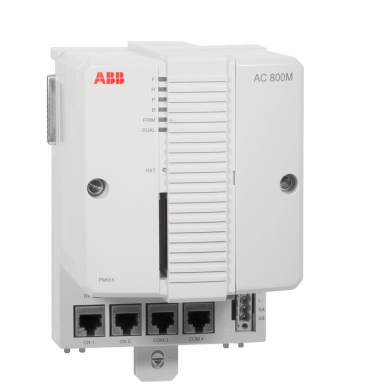

Detailed data
Processor type MPC862P
Switch over time in red.conf. Max 10ms
No. of applications percontroller 32
No. of programs per application 64
No. of diagrams per application 128
No. of tasks percontroller 32
Number of differentcycle times 32
Cycle time per application programs Down to 1 ms
Flash PROMfor firmware storage 4MB
Power supply 24V DC (19.2-30 V DC)
Powerconsumption +24V typ/max 287 / 487 mA
Power dissipation typ. 6.9 W (11.4W max)
Redundant power supply status input Yes
Built-in back-up battery Lithium, 3.6 V
Clock synchronization 1 ms between AC 800Mcontrollers by CNCP protocol
Event queue in controller per OPC client Up to 3000 events
AC 800Mtransm. speed toOPC server 36-86 events/sec,113-143 data messages/sec
Comm. modules on CEX bus 12
Supplycurrent on CEX bus Max 2.4A
I/O clusters onModulebus with non-red. CPU 1 electrical, 7 optical
I/O clusters onModulebus with red. CPU 0 eletrical + 7 optical
I/O capacity onModulebus Max 96 (single PM865) or 84(red. PM865) I/O modules
Modulebus scan rate 0 -100ms (actual time depending on number of I/O modules)
Supplycurrent on Electrical Modulebus
24V : max 1.0 A
5 V : max 1.5 A
Ethernetchannels 2
Ethernet interface Ethernet (IEEE 802.3),10Mbit/s, RJ-45, female (8-pole)
Control Network protocol MMS (Manufacturing Message Service) and IAC (Inter Application
Communication)
Recommended Control Network backbone MMS (Manufacturing Message Service) and IAC (Inter Application
Communication)
Real-time clock stability 100 ppm (approx.1 h/year)
RS-232C interface 2 (one general,1 for service tool)
RS-232C interface (COM3) (non red. only)
RS-232C, 75-19 200 baud, RJ-45 female (8-pole), not opto isolated, full RTSCTS support
RS-232C interface (COM4) (non red. only)
RS-232C, 9 600 baud, RJ-45 female (8-pole), opto isolated, no RTS-CTS
support
