ISA Secure certified - Read more
Reliability and simple fault diagnosis procedures
Modularity, allowing for step-by-step expansion
IP20 Class protection withoutthe requirementfor enclosures
The controllercan be configuredwith 800xA control builder
The controller has full EMC certification
Sectioned CEX-Bus using a pair of BC810 / BC820
Hardware based on standards for optimumcommunication connectivity(Ethernet, PROFIBUS DP, etc.)
Built-in redundant Ethernet Communication ports
The CPU board contains the microprocessor and RAM memory, a realtime clock, LED indicators, INITpush button, and a CompactFlash
interface.

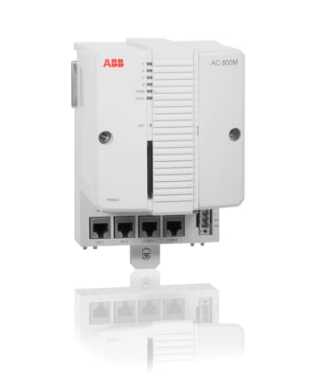

The base plate of the PM866 / PM866A controller has two RJ45
Ethernet ports (CN1, CN2) forconnection to the Control Network,
and two RJ45 serial ports (COM3, COM4). One of the serial ports
(COM3) is an RS-232C portwith modemcontrol signals,whereas the
other port(COM4) is isolated and used for the connection of a
configuration tool. The controller supports CPU redundancyfor
higher availability(CPU, CEX-Bus,communication interfaces and
S800 I/O).
Simple DIN rail attachment / detachment procedures, using the
unique slide & lock mechanism. All base plates are providedwith a
unique Ethernet address which provides every CPUwith a hardware
identity. The address can be found on the Ethernet address label
attached to the TP830 base plate.
