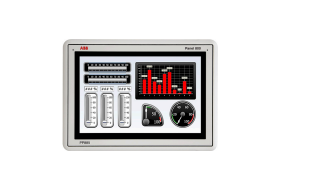

Panel PP882 PP885
Article number 3BSE069275R1 3BSE069276R1
Display size 12.1" 15.4"
Display resolution, ratio 1280 x 800 (16:10)
Display colors TFT-LCD 262k LED backlight
Brightness (cd/m2) 400 450
View angle (H/V) 176° / 176° 160° / 140°
Dimming Yes
Interaction type Resistive touch, 1 million finger touch operations
Processor Intel
Atom (1.1GHz)
Main memory 1GB (DDR2)
Application memory >=1.4GB
External storage media 1 × SD card slot (or SDHC with latest image loaded)
Realtime clock Yes
Ethernet (shielded RJ 45) 2 built-in ports: 1 x 10/100/1000 Mbit/s, 1 x 100 Mbit/s
USB 3 × USB 2.0, max. 500 mA
Serial port 1/2 2 combined ports: 2 × RS232, 2 × RS422/485
Dimension W×H×D (mm) 340 × 242 × 79 410 × 286 × 83
Cut-out dimension W×H (mm) 324 × 226 394 × 270
Mounting depth mm[1] 72 (172) 76 (176)
Mounting Panel Mount and VESA 75 × 75
Net weight (kg) 2.6 3.85
Frame material, front foil Powder-coated aluminum, Polyester Autotex EBA180L
Power supply +24 VDC (18-32 VDC)
Power consumption 22W 24W
Protection (front/rear) IP65 / IP20
Operating temperature -10 to +50 °C
Relative operating humidity 5-85% non-condensing
Storage temperature -20 to +70 °C
Vibration and schock 0.7 G / 10 G
Environmental and Certification (1) CE
UL UL 508
RoHS compliance: EN 50581:2012
WEEE compliance: DIRECTIVE/2012/19/EU
