PP845A 3BSE042235R2 ABB Panel 800 version 6

INQUIRE NOW

Products Name: PP845A 3BSE042235R2 ABB Panel 800 version 6

PRODUCT DESCRIPTION

Brand:  ABB

Model number: PP845A 3BSE042235R2

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.3kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

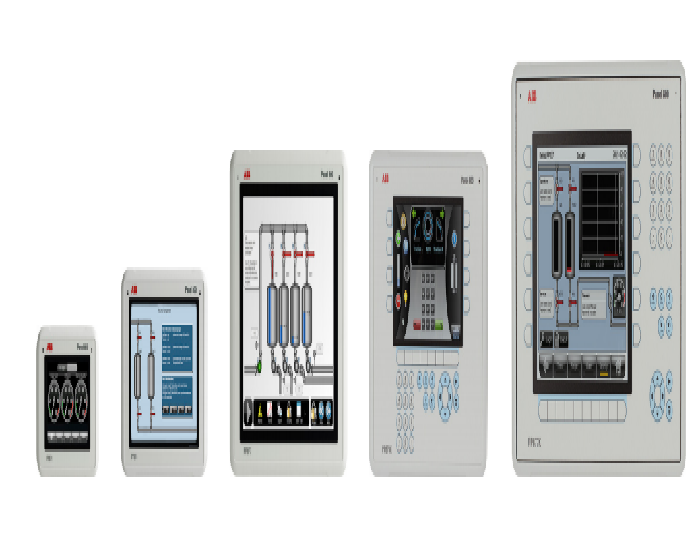

Panel 800 family comprises of user-friendly, intuitive and ergonomic operator panels

thath combine slim, space-saving dimensions with a comprehensive range of advanced

functions. Designed to make process automation easy, all panels are equipped with

advanced functionality for process and equipment control, maneuvered either by

function keys located next to the screen or by touching the LCD display

Panel PP871 PP874 PP877 PP874K PP877K

Article number 3BSE069270R2 3BSE069271R2 3BSE069272R2 3BSE069273R1 3BSE069274R1

Display size 4.3" 7" 10.4" 7" 10,4"

Display resolution, ratio 480 × 272 (16:9) 800 × 480 (16:9) 640 × 480 (4:3) 840 x 480 (16:9) 640 × 480 (4:3)

Display colors TFT-LCD 64k LED backlight

Brightness (cd/m2

) 350 350 450 350 450

View angle (H/V) 140° / 115° 140° / 130° 160° / 140° 140° / 130° 160° / 140°

Dimming Yes

Interaction type Resistive touch, 1 million finger touch operations Key, 1 million key press operations

Processor ARM9 (400 MHz)

Main memory 128 MB (DDR2)

Application memory 80 MB

External storage media 1 × SD card slot (or SDHC with latest image loaded)

Realtime clock Yes

Ethernet (shielded RJ 45) 1 × 10/100 Base-T

USB 1 x USB 2.0, max. 200 mA

Serial port 1/2 2 combined ports: 2 × RS232, 2 × RS422/485

Dimension W×H×D (mm) 145 × 103 × 49 204 × 143 × 49 280 × 228 × 51 410 × 286 × 83

Cut-out dimension W×H (mm) 128 × 87 187 × 126 262 × 209 394 × 270

Mounting depth (mm)(1) 43 (143) 44 (144) 76 (176)

Mounting Panel Mount and VESA

50 × 50

Panel Mount and VESA 75 × 75

Net weight (kg) 0.5 0.8 1.5 1.7 3.8

Frame material, front foil Powder-coated aluminum, Polyester Autotex EBA180L Powder-coated aluminum, Polyester Autotex F150.

Membrane switch keyboard with metal domes.

Power supply +24 VDC (18-32 VDC)

Power consumtion 3.6 W 6.0 W 9.6 W 6.0 W 9.6 W

Protection (front/rear) IP66 / IP20 IP65 / IP20

Operating temperature -10 to +60 °C

Relative operating humidity 5-85% non-condensing

Storage temperature -20 to +70 °C

Vibration and shock 0.7 G / 10 G

Environmental and

Certification (2)

CE, UL508(3), DNV(3) CE, UL, DNV

RoHS compliance: EN 50581:2012

WEEE compliance: DIRECTIVE/2012/19/EU
