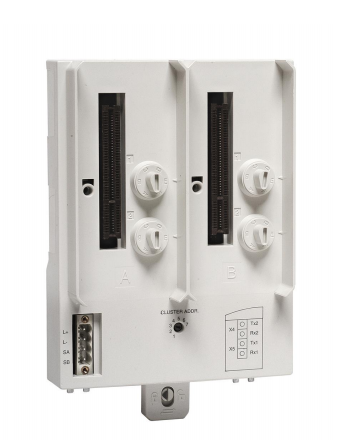

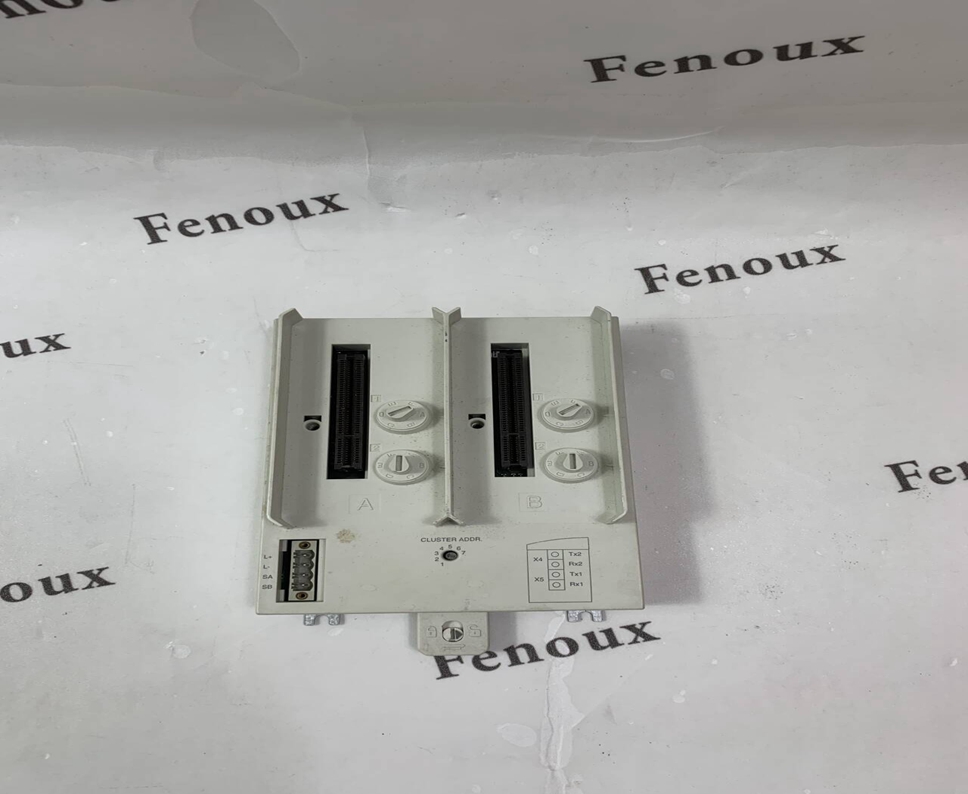

The TU841is a module termination unit(MTU) for redundant
configuration of OpticalModuleBus ModemTB840/TB840A,for use
with non-redundantI/O.
TheMTU is a passive unit having connections for power supply, a
single electricalModuleBus,two TB840/TB840A and a rotary switch
forcluster address (1to 7) setting.
Four mechanical keys,two for each position, are used to configured
theMTU for the righttypes of modules. Each key has six positions,
which gives a total number of 36 differentconfigurations. The
configurations can be changedwith a screwdriver.
Termination Unit TU840 connects TB840/TB840A to redundantI/O.
Termination Unit TU841connects TB840/TB840A to non-redundant
I/O.
Detailed data
24V consumption typ. N/A
ModuleBus current distribution Maximum 5 V 1.5 A
24V 1.5 A
Mechanical Keys 36 differentcombinations
Acceptable wire sizes
Solid: 0.2 -2.5 mm²
Stranded: 0.2 -2.5 mm², 24-12 AWG
Recomended torque: 0.5 Nm
Rated insulation voltage 50 V
Dialectictestvoltage 500 V a.c
Power dissipation 2.0W
Environment and certification
CE-marking Yes
Electrical Safety EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
Hazardous location cULus Hazardous Location Class 1 Zone 2, ATEX Zone 2
Marine certificates ABS, BV, DNV-GL, LR
Temperature, Operating 0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
Temperature, Storage -40 to +70 °C (-40 to +158° F)
Relative humidity 5 to 95 %, non-condensing
Max ambient temperature 55 °C (131 °F), forvertical mounting 40 °C (104°F)
Equipmentclass Class l according to IEC 60536; (earth protected)
Ingress protection IP20 according to IEC 60529
RoHS compliance DIRECTIVE/2011/65/EU (EN 50581:2012)
WEEE compliance DIRECTIVE/2012/19/EU
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
