Brand： Allen Bradley
Model number：500FL- BOD93
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.62kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
CONTACTOR DATA

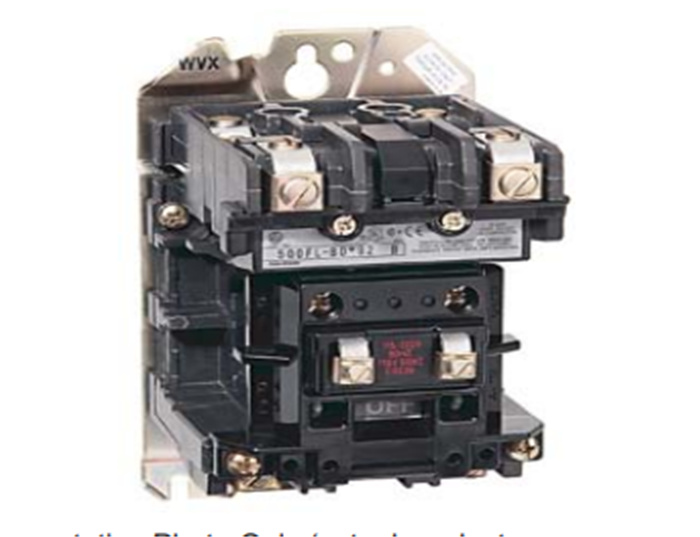

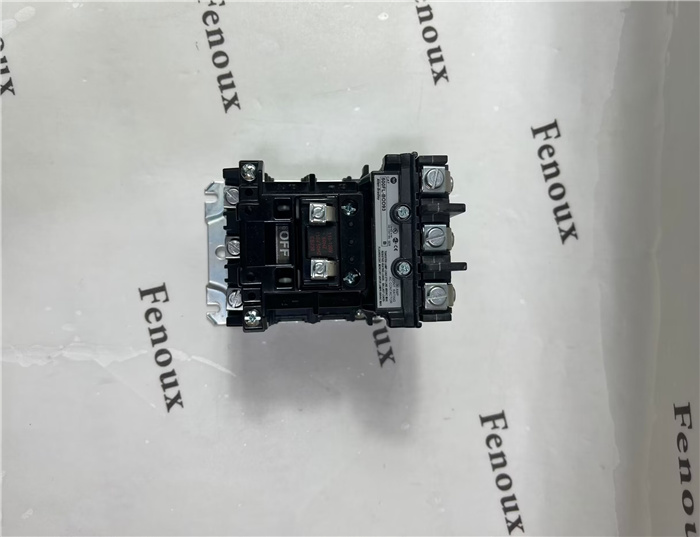

Bulletin Number 500FL NEMA Feed-Though Lighting Contactors
Maximum Ampere Rating 60A All Non-Motor and Lighting Loads
Enclosure Type Open Type
Phases 3 Phases
Coil Volyage 115-120V 60Hz
Pole Configuration 3 Power Poles
Auxiliary Contacts Yes
Bulletin 500FL
Feed-through wiring electrically held
For non-motor loads, lighting, and heating
NEMA sizes to 300 A
2- and 3-pole configurations
Description
Table of Contents
Product Selection...... this page
Accessories.................. 1-112
Modifications............... 1-107
Specifications.............. 1-127
Full Load Currents
of AC Motors............... 1-133
Approximate
Dimensions................... 1-136
Coil Data ....................... 1-130
Standards Compliance
NEMA/EEMAC ICS 2
UL 508
CSA C22.2, No.14
ABS 4/5.115 — American Bureau of
Shipping
UCSG 46 CFR 111.70
IEEE 45
EN/IEC 60947-4-1
Certifications
CSA Certified (LR1234)
UL Listed (File No. E14843, Guide No. NRNT)
CE Marked
Bulletin 500FL open type lighting contactors are electrically held
contactors designed to switch the current to incandescent filament,
fluorescent, mercury arc lamps, capacitors, and other non-motor
loads. These contactors are not suitable for use on sign flashers.
Hold-in Contact — If a hold-in contact for 3-wire push button control
is required, it must be specified on the order as a modification. A
normally open auxiliary contact to be used as a hold-in contact can
also be added in the field. See page 1-112 for information.
Feeder disconnect type lighting contactors are used for turning large
blocks of lights on and off.
