Brand： Allen Bradley

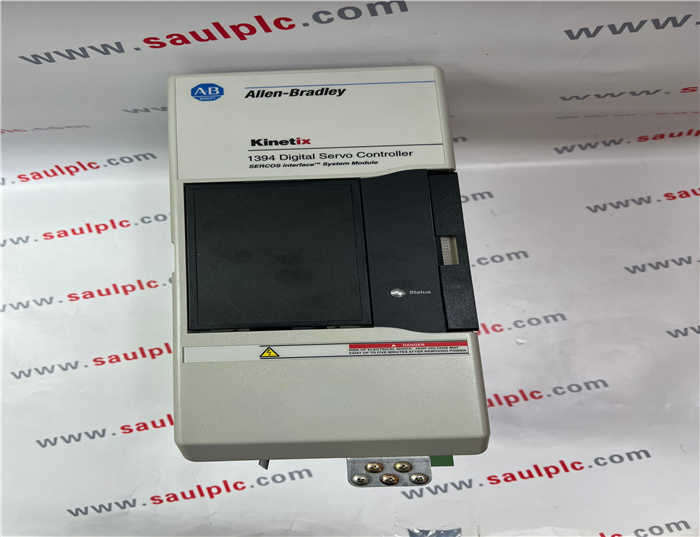

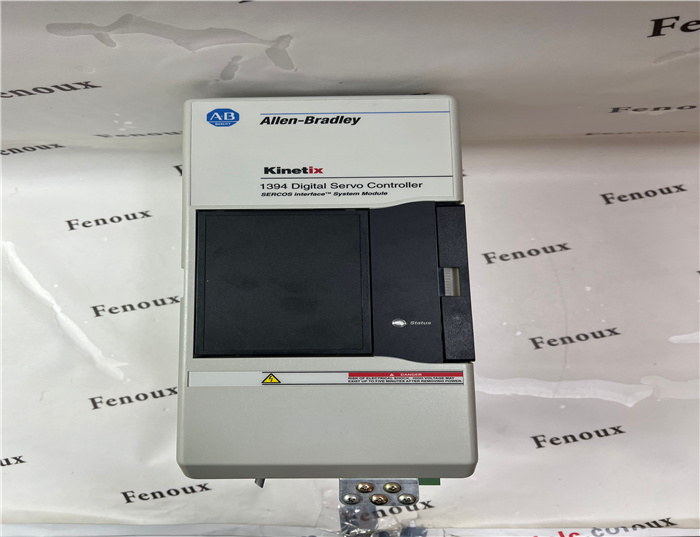

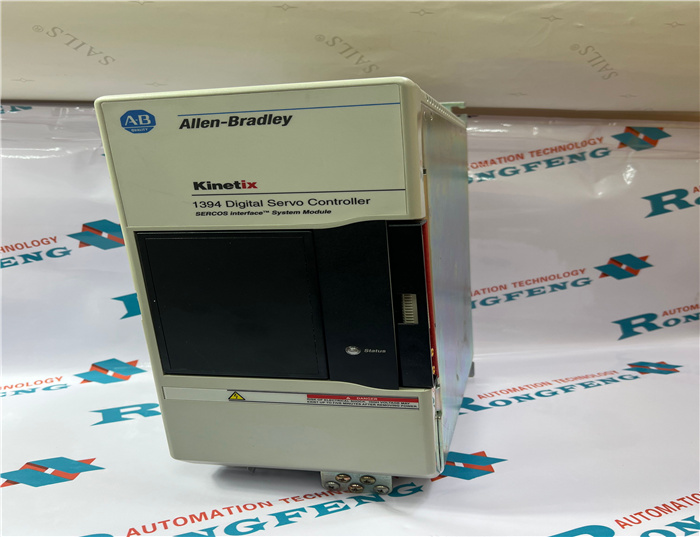

Model number：1394C-SJT10-D
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：1.2kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
Read this preface to familiarize yourself with the rest of the manual.
The preface covers the following topics:
• Who Should Use this Manual
• Purpose of this Manual
• Contents of this Manual
• Product Receiving and Storage Responsibility
• Related Documentation
• Conventions Used in this Manual
• Allen-Bradley Support
Who Should Use this
Manual
Use this manual for designing, installing, and wiring your 1394
SERCOS interface Multi-Axis Motion Control System. The manual is
intended for engineers or technicians directly involved in the
installation and wiring of the 1394.
If you do not have a basic understanding of the 1394, contact your
local Allen-Bradley representative for information on available training
courses before using this product.

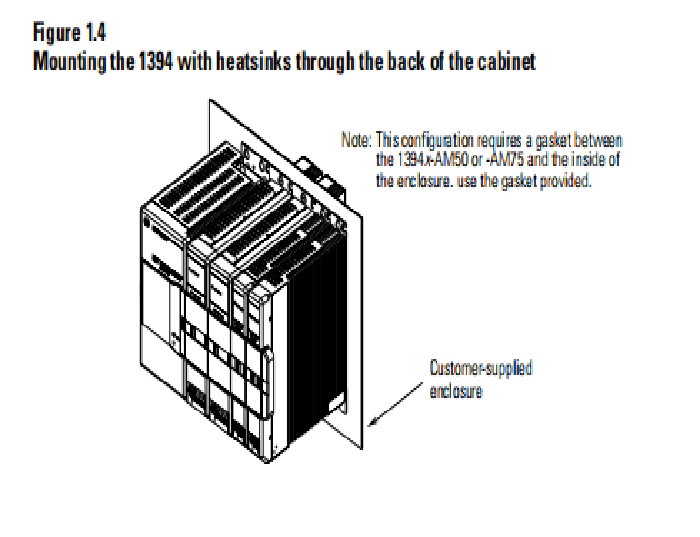

Purpose of this Manual This manual provides the mounting, wiring, and connecting
procedures for the 1394 and standard Rockwell Automation/AllenBradley motors recommended for use with the 1394.
For power up procedures, troubleshooting, and system integration
with the ControlLogix and SoftLogix SERCOS module/PCI card
(see table below) refer to the 1394 SERCOS Interface Integration
Manual (publication 1394-IN024x-EN-P). Manuals are available
electronically (as a .pdf) or in hardcopy from
www.theautomationbookstore.com.
Unpacking Modules

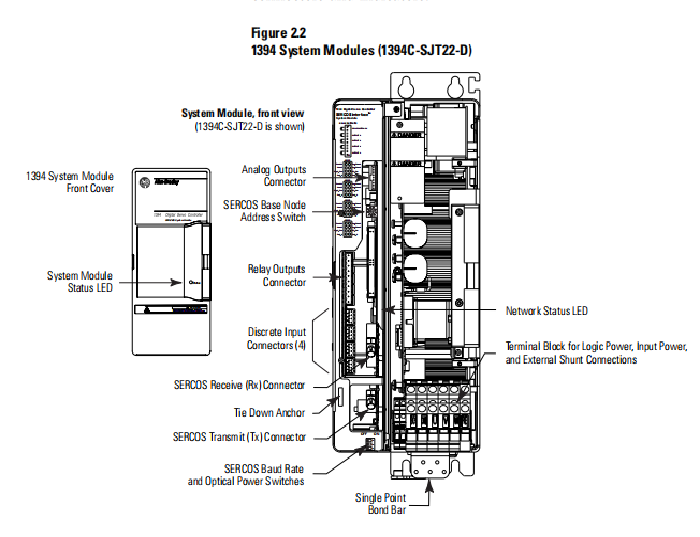

Each 1394 system module ships with the following:
• One system module
• One system terminator
• One installation manual (publication 1394-IN002x-EN-P)
• Mating power connectors (5 and 10 kW only)
• Mating I/O and feedback connectors
• Cable shield grounding clamps
Each 1394 axis module ships with the following:
• One 1394 axis module
• TB1 and TB2 connectors
• Cable shield grounding clamp
• One 1394 axis module information sheet (publication 1394-5.5)
Remove all packing material, wedges, and braces from within and
around the components. After unpacking, check the item(s)
nameplate catalog number against the purchase order. Refer to
Appendix C for more information on catalog numbers.
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
