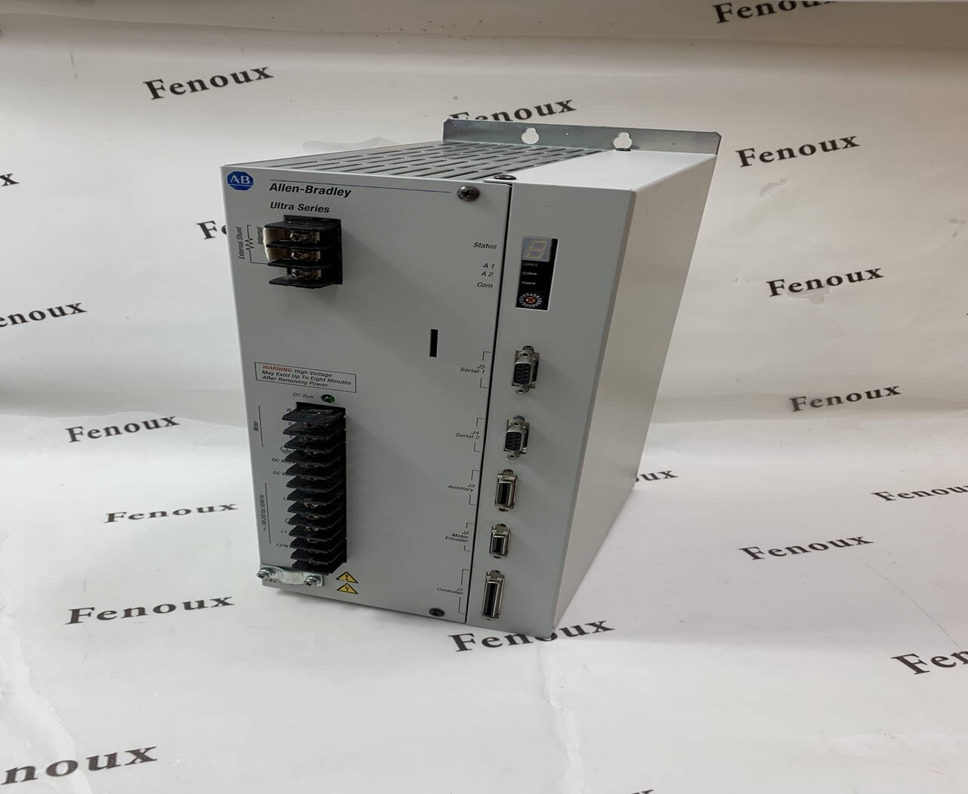

1398-DDM-075 Allen Bradley

ATTENTION: If the cabinet is ventilated, use filtered or

conditioned air to prevent the accumulation of dust and dirt

on electronic components. The air should be free of oil,

corrosives, or electrically conductive contaminates.

Description:

I/O Connections are fully described in the following sections:

● “J1 – Controller” on page 6-1 defines the controller connections

● “J2 – Encoder” on page 6-27 defines the motor encoder

connections

● “J3 – Auxiliary Port” on page 6-31 defines the auxiliary controller

connections

● “J4 and J5 – Serial Port” on page 6-34 defines the RS-232/RS-485

serial port connections

Power Connections are fully described in the following sections:

● “TB1 – DC Bus and AC Power” on page 7-1 defines the power

connections.

● “TB2 – Shunt Regulator” on page 7-11 defines the internal and

external shunt connections.

Figure 6.44 on page 6-45 shows these inputs and outputs on a general

level. Specific operational set ups are depicted in Figure 8.1 through

Figure 8.12 (pages 8-2 through 8-45, respectively). These figures

cover position, velocity and torque mode controls for:

● Analog Controllers,

● Preset Controllers,

● Position Followers, or

● Indexing controllers (available only on 1398-DDM-010X,

1398-DDM-020X, 1398-DDM-030X, 1398-DDM-075X and

1398-DDM-150X).
