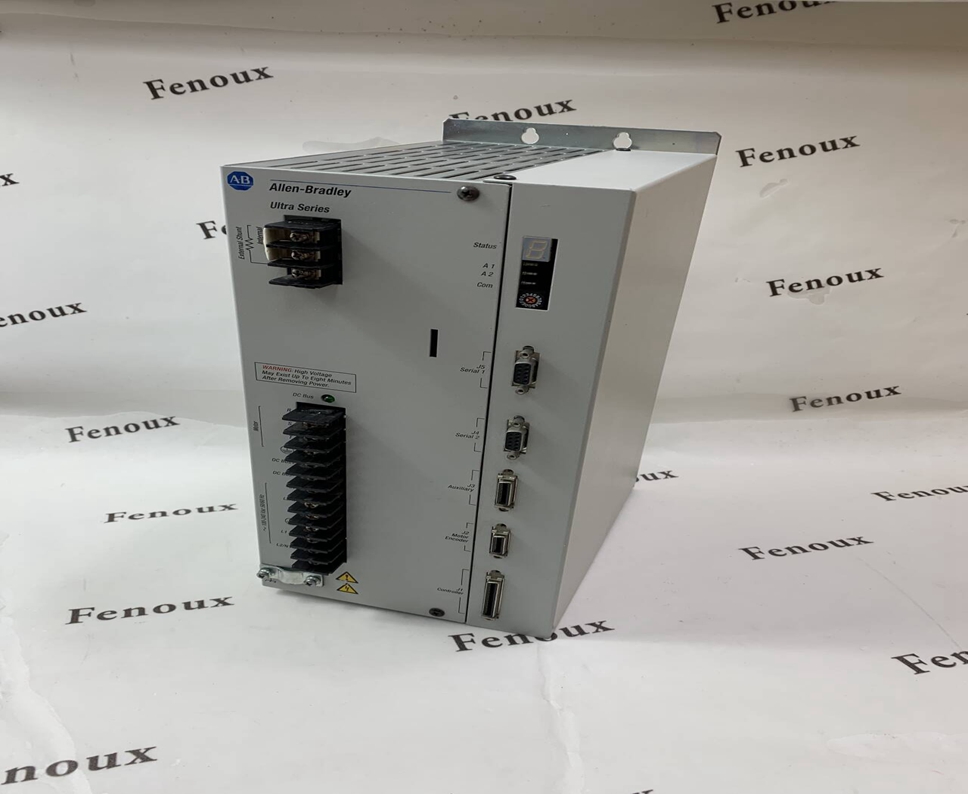

1398-DDM-075 AB

The 1398 ULTRA™ Series is a family of single-axis digital and positioning servo

drives designed to offer flexibility and performance for a wide range of applications.

The ULTRA 100™ and 200™ digital servo drives offer you versatility and ease of

use. Using the Windows™-based Ultra Master software, you can quickly set up,

commission, and troubleshoot ULTRA 100 and 200 drives. TheULTRA Plus

positioning servo drives combine control and drive functionality to create powerful

single-axis motion controllers. Using the graphical Windows-based GML™ Ultra

software, you can quickly program, commission, and troubleshoot ULTRA Plus

drives.

Description:

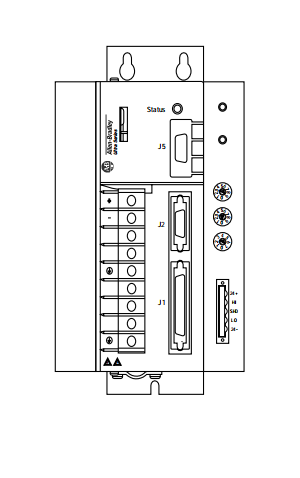

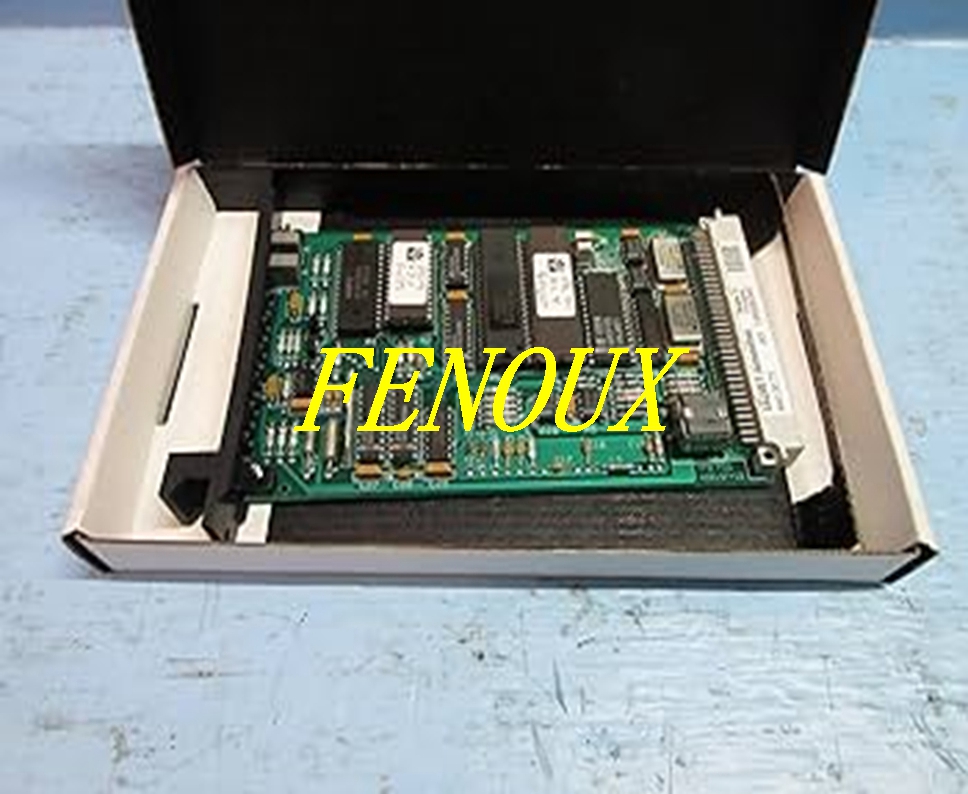

The DeviceNet interface card is an optional card that provides a direct, digital

connection between a DeviceNet network and an ULTRA 100 drive.

The DeviceNet option provides:

• Two bi-colored LEDs for network and module status

• Three switches to set node addresses and baud rate

• Several message protocols

• Explicit messaging

• Polled I/O messaging

• Change-of-state/cyclic messaging

ULTRA 200 positioning drives deliver full-featured flexibility and impressive

power and performance. Each ULTRA 200 drive provides:

• 115 to 230V AC single phase input (single phase or three phase for the

75 amp version, three phase only for the 150 amp version)

• Phase-to-phase and phase-to-ground short circuit protection

• An internal resistive shunt

• A built-in auxiliary AC input (to power logic only)

• Built-in power supplies (including 24V I/O supply)—no external source

required (except AC line)

• The ability to drive sinusoidal AC brushless motors

• An DC bus available externally for power leveling or for use of shared

power supplies

• Advanced multi-processor design for leading-edge velocity loop

bandwidth, fully digital current, velocity, and position loops

• Large-scale integration with custom ASICs and IPMs for performance

and reliability

• A 16-bit A/D convertor for precise velocity command input

• Flash memory for simple field upgrades

• A personality module to store setup parameters and simplify drive

replacement

• Reduced component count for reliability

• Internally-shielded filters for electromagnetic compatibility (EMC)

• Four dedicated I/O plus eight user-selectable, optically isolated digital

inputs and outputs (sourcing/active high):

• Two dedicated inputs

• Two dedicated outputs

• Four user-selectable inputs

• Four user-selectable outputs

• Two analog inputs for external current limit

• Two analog outputs for variable monitoring or torque sharing
