Beneffts
Cost Optimized
Mix safety inputs and outputs with
standard POINT I/O™, all with one node
Compact Solution
Maximum I/O density in
minimum panel space
Easy Retrofft
Add to existing panels
using POINT I/O
I/O point level diagnostics and Status
Indicators
Quickly identify a problem to help
reduce machine downtime
TÜV certiffed
For use in safety applications
up to SIL3, PLe and CAT 4
Easier Conffguration
Via RSLogix 5000® with full
support of IP addressing
Flexibility
Supports connection of single and
dual channel safety devices on inputs
and outputs
Individual Test Outputs
Can be assigned for each
safety input device allowing for
optimized cable installations
Muting Lamp Control
Provided on selected test pulse
outputs for lamp control and
fault monitoring

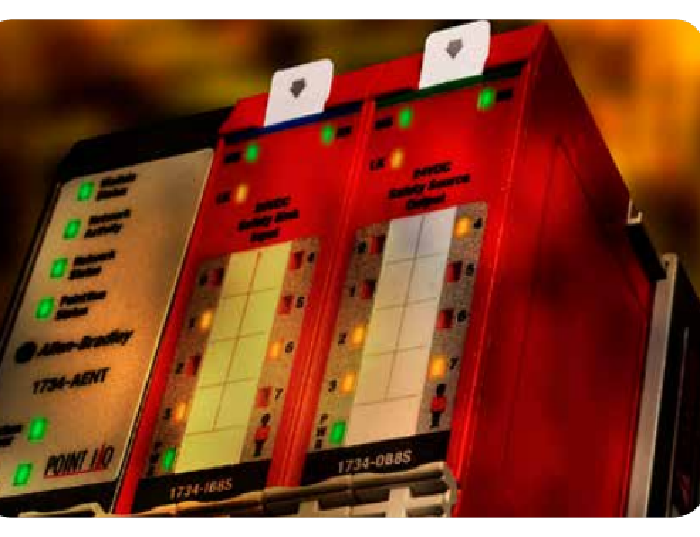

POINT Guard I/O are safety rated I/O modules designed to fft into the
standard POINT I/O system, thus offering automation and safety
functionality in a maximum density I/O solution. They are ideal for use in
applications requiring safety and automation control. They communicate
with CIP Safety protocol over EtherNet/IP for GuardLogix® safety controllers
and DeviceNet for SmartGuard™ 600 safety controllers.
• CIP Safety over EtherNet/IP or DeviceNet
• Maximum density I/O solution for premium panel space applications
• Safety and automation control in one I/O solution
The application of the CIP Safety protocol allows simultaneous
transmission of safety and automation control data and diagnostic
information over one CIP network.
POINT I/O and POINT Guard I/O can be controlled by a single
GuardLogix controller for both safety and automation control through
one node. If separate safety control is required, a GuardLogix controller
can be used with POINT Guard I/O for safety control and a ControlLogix®
controller with POINT I/O for automation control. No changes are
required to the POINT I/O system.
This solution is ideal for applications requiring maximum I/O
density in minimum panel space. The advanced solid-state design allows
for module replacement in minutes and reduces the need for special
maintenance or training.
POINT Guard I/O is designed for use with industrial equipment and is
especially suited for robotic, point-of-operation, guard-monitoring and
distributed control application
