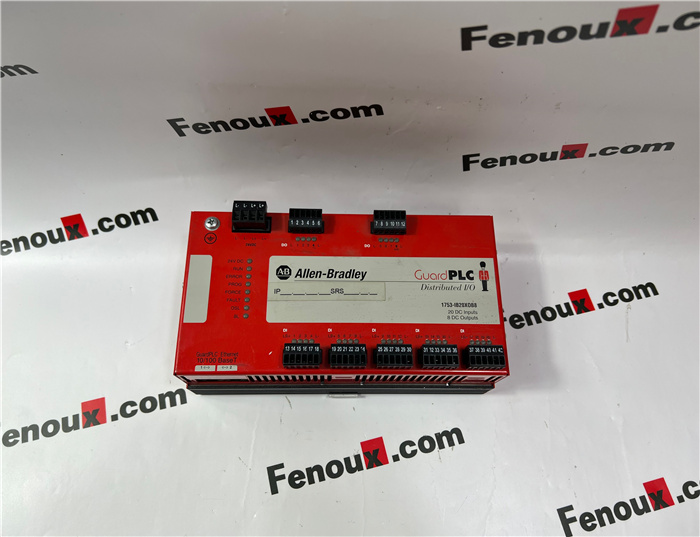

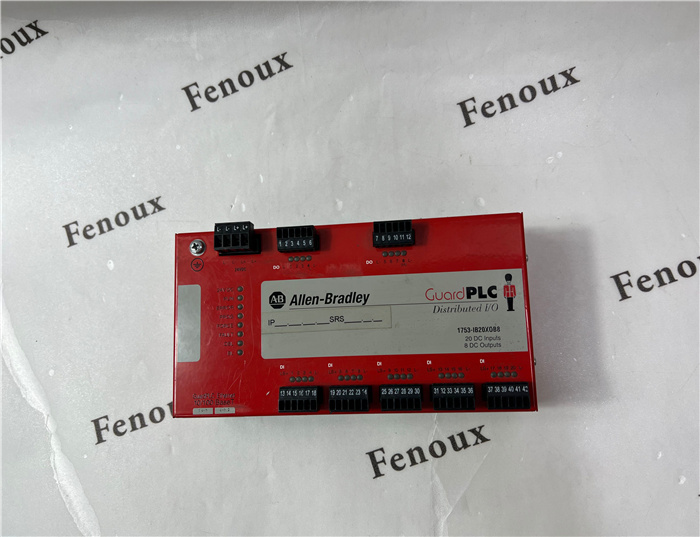

1753-IB20XOB8 Allen Bradley GuardPLC Digital Input/Output Module

INQUIRE NOW

Products Name: 1753-IB20XOB8 Allen Bradley GuardPLC Digital Input/Output Module

PRODUCT DESCRIPTION

Brand:  Allen Bradley

Model number:1753-IB20XOB8

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.36kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

Important User Information

Solid-state equipment has operational characteristics differing from those of electromechanical equipment.

Safety Guidelines for the Application, Installation and Maintenance of Solid State Controls (Publication

SGI-1.1 available from your local Rockwell Automation sales office or online at

http://www.rockwellautomation.com/literature/) describes some important differences between solid-state

equipment and hard-wired electromechanical devices. Because of this difference, and also because of the

wide variety of uses for solid-state equipment, all persons responsible for applying this equipment must

satisfy themselves that each intended application of this equipment is acceptable.

In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages

resulting from the use or application of this equipment.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many

variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot

assume responsibility or liability for actual use based on the examples and diagrams.

No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits,

equipment, or software described in this manual.

Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell

Automation, Inc., is prohibited.

Throughout this manual, when necessary, we use notes to make you aware of safety considerations.

WARNING: Identifies information about practices or circumstances that can

cause an explosion in a hazardous environment, which may lead to personal

injury or death, property damage, or economic loss.

ATTENTION: Identifies information about practices or circumstances that can

lead to personal injury or death, property damage, or economic loss.

Attentions help you identify a hazard, avoid a hazard and recognize the

consequences.

SHOCK HAZARD: Labels may be on or inside the equipment, for example,

drive or motor, to alert people that dangerous voltage may be present.

WARNING: Labels may be on or inside the equipment, for example, drive or

motor, to alert people that surfaces may reach dangerous temperatures.

IMPORTANT Identifies information that is critical for successful application and

understanding of the product.

Make Connections for Safety-related Communication

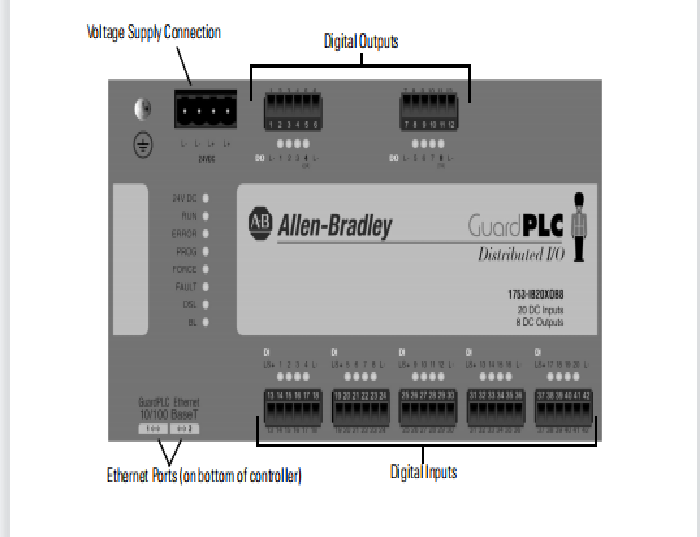

The module has two 10/100BaseT, RJ45 connectors on the bottom of the unit, that provide

communication to the GuardPLC controller via GuardPLC Ethernet protocol. Because this is

an Ethernet switch, you can daisy-chain connections from the GuardPLC module to other

distributed I/O modules. The switch is auto-detect. Either crossover or straight-through cabling

can be used. Star or line configurations are available. Make sure that a network loop is not

generated. Data packets must be able to reach a node only via a single path.

The media access control (MAC) address of the module can be found on the label positioned

over both lower RJ45 connections.

A transparent label shipped with the module can be used to note the IP address and

system ID (SRS).

Reset Push Button

The module is equipped with a reset push button. Reset via the push button is necessary under

the following conditions.

• You forget the password to go online via the programming software.

• You are unable to determine the IP address and SRS of the controller.

The push button is accessible through a small round hole at the top of the housing,

approximately
