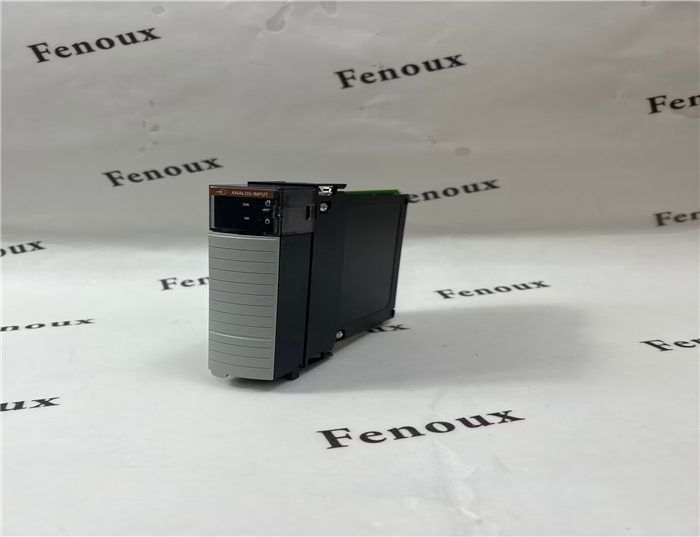

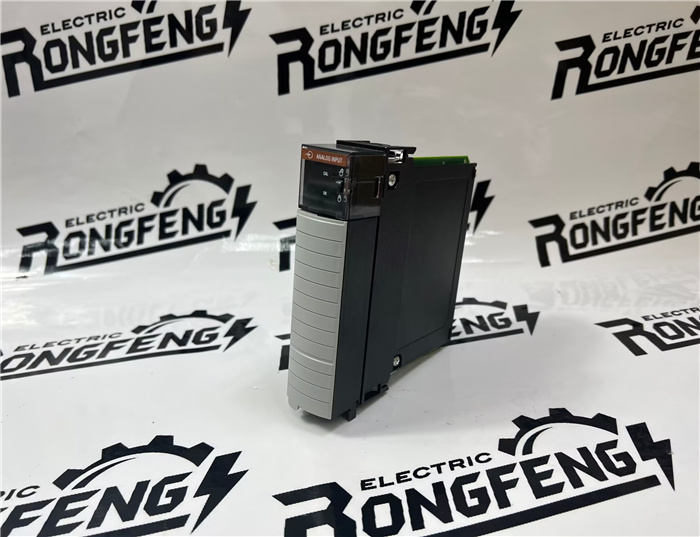

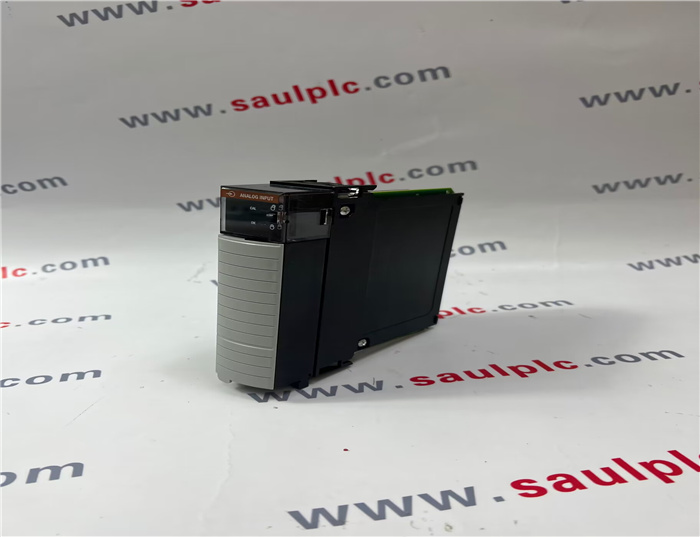

Products Name: 1756-IF16 Allen Bradley 1756 ControlLogix Analog I/O Modules
PRODUCT DESCRIPTION
Brand: Allen Bradley
Model number:1756-IF16
Colour:new
Warranty: 12 months
Lead Time:3-day working day
Country of origin: USA Price: Please contact us
Product weight:0.32kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
WARNING:
• This equipment is not resistant to sunlight or other sources of UV radiation.
• This equipment shall be mounted in an ATEX/IECEx Zone 2 certified enclosure with a minimum ingress protection rating of at least IP54 (in accordance
with EN/IEC 60079-0) and used in an environment of not more than Pollution Degree 2 (as defined in EN/IEC 60664-1) when applied in Zone 2
environments. The enclosure must be accessible only by the use of a tool.
• This equipment shall be used within its specified ratings defined by Rockwell Automation.
• Provision shall be made to prevent the rated voltage from being exceeded by transient disturbances of more than 140% of the peak rated voltage when
applied in Zone 2 environments.
• The instructions in the user manual shall be observed.
• Secure any external connections that mate to this equipment by using screws, sliding latches, threaded connectors, or other means provided with this
product.
• Do not disconnect equipment unless power has been removed or the area is known to be nonhazardous.Connect the Wiring
You can use an RTB or a Bulletin 1492 pre-wired Interface Module (IFM) to connect
wiring to your module. An IFM has been pre-wired before you received it.
If you are using an RTB, connect wiring as directed in the following steps. We
recommend that you use Belden 8761 cable to wire the RTB. The RTB terminations
can accommodate 0.33…2.1 mm2
(22…14 AWG) shielded wire. Before wiring the
RTB, you must connect ground wiring
Connect the Grounded End of the Cable
Before wiring the RTB, you must connect the ground wiring.
1. Remove a length of cable jacket from the Belden cable.
2. Pull the foil shield and bare drain wire from the insulated wire.
3. Twist the foil shield and drain wire together to form one strand.
4. Attach ground lug and apply heat shrink tubing to exit area.
ATTENTION: The module is designed to support removal and
insertion under power (RIUP). However, when you remove or
insert a removable terminal block (RTB) with field-side power
applied, unintended machine motion or loss of process control
can occur. Exercise extreme caution when using this feature.
