(1) Maximum wire size requires extended housing - 1756-TBE.
(2) Use this conductor category information for planning conductor routing as described in the system level
installation manual.
(3) Refer to publication 1770-4.1 Industrial Automation Wiring and Grounding Guidelines.
(4) See the Product Certification link at www.ab.com for Declarations of Conformity, Certificates, and other
certification details.

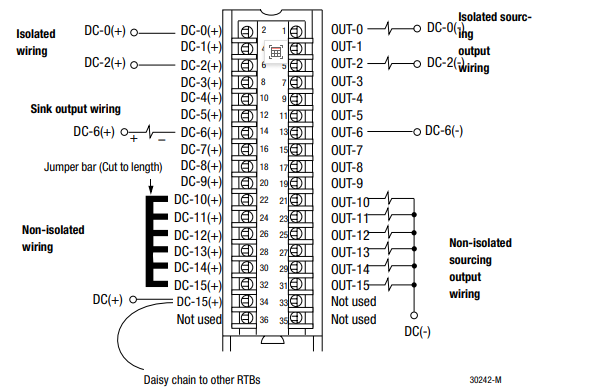

NOTES:1.All terminals with the same
name are connected together
on the module. For example,
DC(+) can be connected to
either terminal marked DC-15.
2. Do not physically connect
more than two wires to a
single RTB terminal. When
you use the second DC-15(+)
terminal to daisy chain to
other RTBs, always connect
the daisy chain as shown.
3. Outputs can be wired in a sink
or source configuration as
shown above.
4. The jumper bar part number
is 97739201. Contact your
local Rockwell Automation
sales representative to order
additional jumper bars, if
necessary.
5. If separate power sources are
used, do not exceed the
specified isolation voltage.
Certifications
(when product is marked)
UL UL Listed Industrial Control Equipment
CSA CSA Certified Process Control Equipment
CSA CSA Certified Process Control Equipment for Class I, Division 2
Group A,B,C,D Hazardous Locations
FM FM Approved Equipment for use in Class I Division 2 Group
A,B,C,D Hazardous Locations
CE(4) European Union 89/336/EEC EMC Directive, compliant with:
EN 50082-2; Industrial Immunity
EN 61326; Meas./Control/Lab., Industrial Requirements
EN 61000-6-2; Industrial Immunity
EN 61000-6-4; Industrial Emissions
C-Tick
(4)
Australian Radiocommunications Act, compliant with:
AS/NZS 2064; Industrial Emissions
EEx
(4) European Union 94/9/EEC ATEX Directive, compliant with:
EN 50021; Potentially Explosive Atmospheres, Protection
“n”
