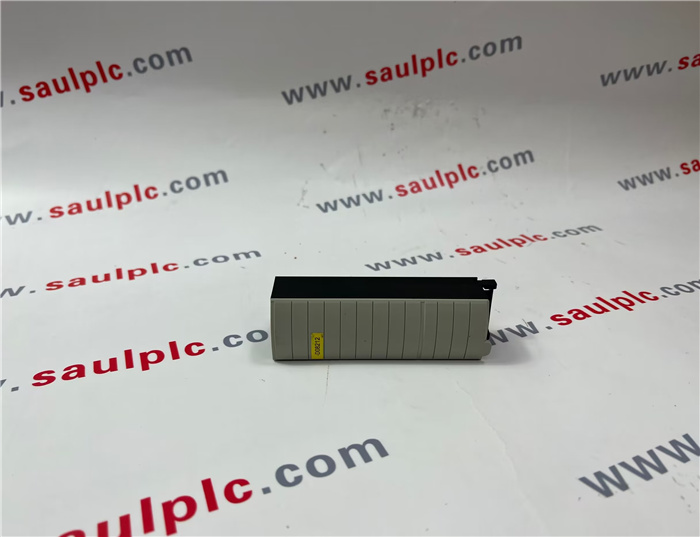

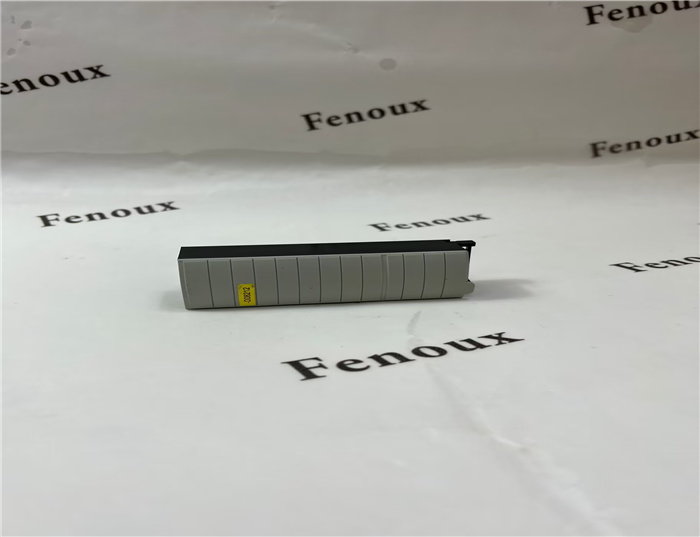

1756-tbch Allen Bradley ControlLogix DC Digital I/O Modules

INQUIRE NOW

Products Name: 1756-tbch Allen Bradley ControlLogix DC Digital I/O Modules

PRODUCT DESCRIPTION

Brand:  Allen Bradley

Model number:1756-tbch

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.23kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

Assemble the RTB and Housing

A removable housing covers the wired RTB to help protect wiring connections

when the RTB is seated on the module.

1. Align the grooves at the bottom of each side of the housing with the side

edges of the RTB.

2. Slide the RTB into the housing until it snaps into place.

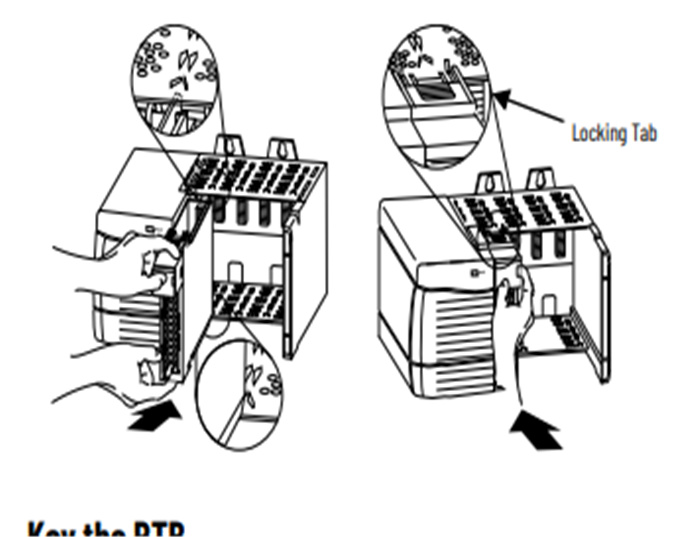

Install the RTB

Follow these steps to install the RTB onto the module to connect the wiring.

1. Before installing the RTB, verify the following:

• Field-side wiring of the RTB is complete.

• The RTB housing is snapped into place on the RTB.

• The RTB housing door is closed.

• The locking tab at the top of the module is unlocked.

2. Align the top, bottom, and left side guides of the RTB with the guides on

the module.

WARNING: When you connect or disconnect the RTB with fieldside

 power applied, an electric arc can occur. This could cause an

explosion in hazardous location installations.

Be sure that power is removed or the area is nonhazardous before

you proceed.

The following information applies when operating this equipment in

hazardous locations. Informations sur l’utilisation de cet équipement en environnements dangereux.

Products marked "CL I, DIV 2, GP A, B, C, D" are suitable for use in Class I Division 2

Groups A, B, C, D, Hazardous Locations and nonhazardous locations only. Each

product is supplied with markings on the rating nameplate indicating the

hazardous location temperature code. When combining products within a system,

the most adverse temperature code (lowest "T" number) may be used to help

determine the overall temperature code of the system. Combinations of equipment

in your system are subject to investigation by the local Authority Having

Jurisdiction at the time of installation.

Les produits marqués "CL I, DIV 2, GP A, B, C, D" ne conviennent qu'à une utilisation en

environnements de Classe I Division 2 Groupes A, B, C, D dangereux et non dangereux.

Chaque produit est livré avec des marquages sur sa plaque d'identification qui

indiquent le code de température pour les environnements dangereux. Lorsque

plusieurs produits sont combinés dans un système, le code de température le plus

défavorable (code de température le plus faible) peut être utilisé pour déterminer le

code de température global du système. Les combinaisons d'équipements dans le

système sont sujettes à inspection par les autorités locales qualifiées au moment de

l'installation.

1756-tbch  Allen Bradley  ControlLogix DC Digital I/O Modules1756-tbch  Allen Bradley  ControlLogix DC Digital I/O Modules
