IMPORTANT PMx, FMx, PFEx, Channel x Program (Idle) Value and Channel x
Fault Value functions are not supported by all controllers. Refer to
your controller’s user manual for details.
Description:

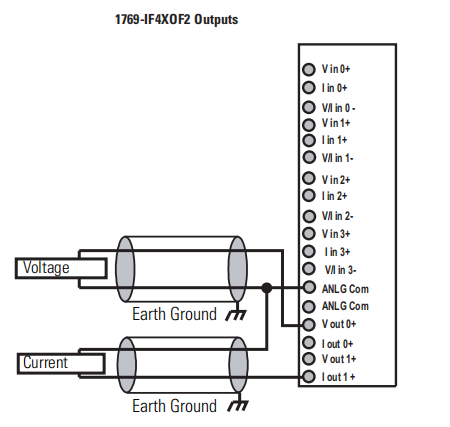

PMx = These bits provide Program (Idle) mode selection for analog
output channels 0 and 1.
Hold Last State (0)—When reset, this bit directs the module to hold the
analog output at the last converted value when the module transitions to
Program mode. This is the default condition.
User-Defined Safe State (1)—When this bit is set and the module
transitions to Program mode, the module converts the user-specified
integer value from the Channel x Program Value Word (3 or 5) to the
appropriate analog output for the configured range as wired.
• FMx = These bits provide Fault mode selection for analog output channels
0 and 1.
Hold Last State (0)—When reset, this bit directs the module to hold the
analog output at the last converted value when the module transitions to
Fault mode. This is the default condition.
User-Defined Safe State (1)—When this bit is set and the module
transitions to Fault mode, the module converts the user-specified integer
value from the Channel x Fault Value Word (2 or 4) to the appropriate
analog output for the configured range as wired.
• PFEx = The Program to Fault Enable bit determines which data value,
Program (PFEx = 0) or Fault (PFEx = 1), is applied to the output if the
module undergoes a fault condition while in the Program mode, resulting
in a change to Fault mode.
• Channel x Program (Idle) Value
Words 3 and 5 allow you to enter the integer values that output Channel 0
(Word 3) and output Channel 1 (Word 5) should assume when the system
transitions to the Program mode. The value must be in increments of 128,
such as 0, 128, or 256, for proper operation. If the value entered is outside
the acceptable increment or range, the module generates a configuration
error for that channel. The module default is zero.
• Channel x Fault Value
Words 2 and 4 allow you to enter the integer values that output Channel 0
(Word 2) and output Channel 1 (Word 4) should assume when the system
transitions to the Fault mode. The value must be in increments of 128,
such as 0, 128, or 256, for proper operation. If the value entered is outside
the acceptable increment or range, the module generates a configuration
error for that channel. The module default is zero
Shipping Port: China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Related products:

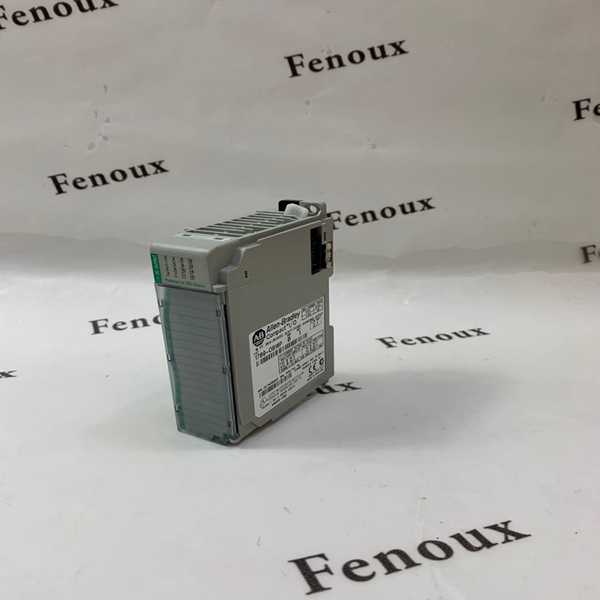

Technical Specifications - 1769-IF4XOF2
Attribute 1769-IF4XOF2
Current draw @ 5.1V 120 mA
Current draw @ 24V 160 mA
Heat dissipation, max 3.03 W
Weight, approx 290 g (0.64 lb)
Dimensions (HxWxD), approx 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.)
Height with mounting tabs 138 mm (5.43 in.)
Slot width 1
Module location DIN rail or panel mount
Power supply 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Power supply distance rating 8 modules
Terminal screw torque 0.68 Nlm (6 lblin)
Retaining screw torque 0.46 Nlm (4.1 lblin)
Wire size (22…14 AWG) solid
(22…16 AWG) stranded
Wire type Cu-90 °C (194 °F)
Replacement terminal block 1769-RTBN18 (1 per kit)
Replacement door label 1769-RL2 series B (2 per kit)
Replacement door 1769-RD (2 per kit)
Vendor ID code 1
Product type code 10
Product code 33
Enclosure type rating None (open-style)
1769-IF4XOF2 Input Specifications
Attribute 1769-IF4XOF2
Inputs 4 differential or single-ended
Input range 0…10V
0…20 mA
Full scale range(1) 0…10.5V
0…21 mA
Converter type Successive approximation
Resolution (2) 8 bits plus sign
Response speed per channel 5 ms
Rated working voltage(3) 30V AC/30V DC
Common mode voltage range(4) 10V DC max per channel
Common mode rejection > 60 dB @ 50 and 60 Hz with the 10 Hz filter selected
Input impedance Current: 150 W
Voltage: 150 kW
Accuracy(5) Current: ±0.6% full scale @ 25 °C (77 °F)
Voltage: ±0.7% full scale @ 25 °C (77 °F)
Overall accuracy Current: ±0.8% full scale @ 0…60 °C (32…140 °F)
Voltage: ±0.9% full scale @ 0…60 °C (32…140 °F)
Accuracy drift with temperature Current: ±0.006% per °C
Voltage: ±0.006% per °C
Technical Specifications - 1769-IF4XOF2
Attribute 1769-IF4XOF2
Current draw @ 5.1V 120 mA
Current draw @ 24V 160 mA
Heat dissipation, max 3.03 W
Weight, approx 290 g (0.64 lb)
Dimensions (HxWxD), approx 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.)
Height with mounting tabs 138 mm (5.43 in.)
Slot width 1
Module location DIN rail or panel mount
Power supply 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Power supply distance rating 8 modules
Terminal screw torque 0.68 Nlm (6 lblin)
Retaining screw torque 0.46 Nlm (4.1 lblin)
Wire size (22…14 AWG) solid
(22…16 AWG) stranded
Wire type Cu-90 °C (194 °F)
Replacement terminal block 1769-RTBN18 (1 per kit)
Replacement door label 1769-RL2 series B (2 per kit)
Replacement door 1769-RD (2 per kit)
Vendor ID code 1
Product type code 10
Product code 33
Enclosure type rating None (open-style)
1769-IF4XOF2 Input Specifications
Attribute 1769-IF4XOF2
Inputs 4 differential or single-ended
Input range 0…10V
0…20 mA
Full scale range(1) 0…10.5V
0…21 mA
Converter type Successive approximation
Resolution (2) 8 bits plus sign
Response speed per channel 5 ms
Rated working voltage(3) 30V AC/30V DC
Common mode voltage range(4) 10V DC max per channel
Common mode rejection > 60 dB @ 50 and 60 Hz with the 10 Hz filter selected
Input impedance Current: 150 W
Voltage: 150 kW
Accuracy(5) Current: ±0.6% full scale @ 25 °C (77 °F)
Voltage: ±0.7% full scale @ 25 °C (77 °F)
Overall accuracy Current: ±0.8% full scale @ 0…60 °C (32…140 °F)
Voltage: ±0.9% full scale @ 0…60 °C (32…140 °F)
Accuracy drift with temperature Current: ±0.006% per °C
Voltage: ±0.006% per °C
