1769-OF2 Allen Bradley MicroLogix 1000 Programmable Controllers

INQUIRE NOW

Products Name: 1769-OF2 Allen Bradley MicroLogix 1000 Programmable Controllers

PRODUCT DESCRIPTION

Brand:  Allen Bradley

Model number: 1769-OF2

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.31kg

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Description:

Compact I/O is suitable for use in an industrial environment when installed

in accordance with these instructions. Specifically, this equipment is

intended for use in clean, dry environments (Pollution degree 2(1)) and to

circuits not exceeding Over Voltage Category II(2) (IEC 60664-1).(3)

Prevent Electrostatic Discharge

(1) Pollution Degree 2 is an environment where, normally, only non-conductive pollution occurs except that

occasionally a temporary conductivity caused by condensation shall be expected.

(2) Over Voltage Category II is the load level section of the electrical distribution system. At this level transient

voltages are controlled and do not exceed the impulse voltage capability of the product’s insulation.

(3) Pollution Degree 2 and Over Voltage Category II are International Electrotechnical Commission (IEC)

designations.

!

ATTENTION Electrostatic discharge can damage integrated circuits or

semiconductors if you touch bus connector pins or the

terminal block. Follow these guidelines when you handle

the module:

• Touch a grounded object to discharge static potential.

• Wear an approved wrist-strap grounding device.

• Do not touch the bus connector or connector pins.

• Do not touch circuit components inside the module.

• If available, use a static-safe work station.

• When not in use, keep the module in its static-shield

box.

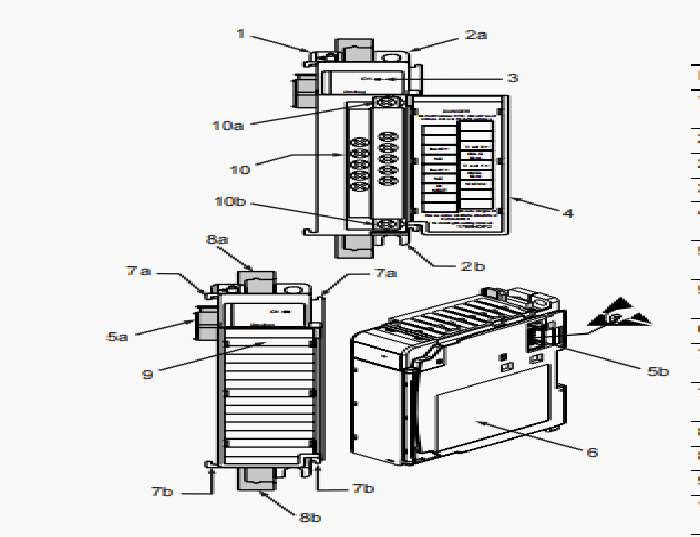

4 Compact™ 1769-OF2 (Series B or Later) Analog Output Module

Publication 1769-IN049A-EN-P

Remove Power

System Assembly

The module can be attached to the controller or an adjacent I/O module

before or after mounting. For mounting instructions, see “Panel Mounting”

on page 6, or “DIN Rail Mounting” on page 7. To work with a system that

is already mounted, see “Replacing a Single Module within a System” on

page 8.

The following procedure shows you how to assemble the Compact I/O

system.

!

ATTENTION Remove power before removing or inserting this module.

When you remove or insert a module with power

applied, an electrical arc may occur. An electrical arc can

cause personal injury or property damage by:

• sending an erroneous signal to your system’s field

devices, causing unintended machine motion

• causing an explosion in a hazardous environment

Electrical arcing causes excessive wear to contacts on

both the module and its mating connector. Worn contacts

may create electrical resistance.

1769-OF2 Allen Bradley    MicroLogix 1000 Programmable Controllers

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service
