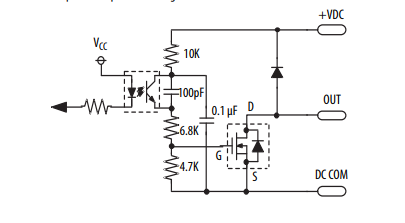

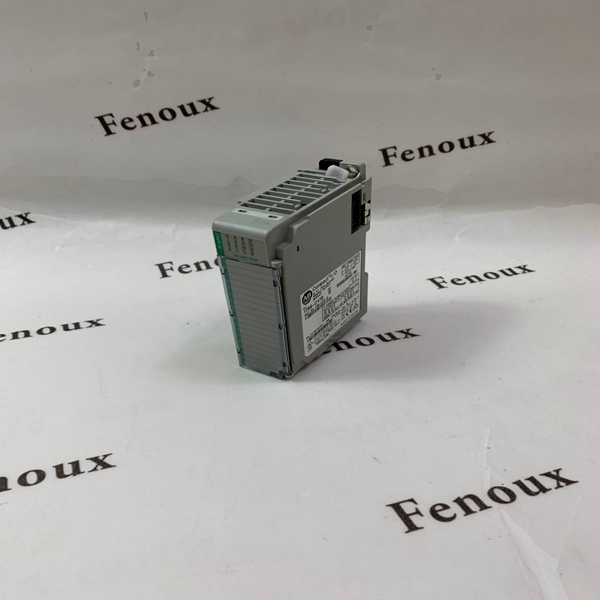

1769-OV16 Allen-Bradley

Attribute 1769-OV16

Outputs 16 (16 points/group)

Voltage category 24V DC sink

Operating voltage range 20.4…26.4V DC

Output delay, on 0.1 ms

Output delay, off 1.0 ms

Current draw @ 5.1V 200 mA

Heat dissipation, max 2.06 W

Off-state leakage current, max

(1) 1.0 mA @ 26.4V DC

On-state current, min 1.0 mA

On-state voltage drop, max 1.0V DC @ 1 A

Current per point, max 0.5 A @ 60 °C (140 °F)

1.0 A @ 30 °C (86 °F)

Current per module, max 4.0 A @ 60 °C (140 °F)

8.0 A @ 30 °C (86 °F)

Surge current

(2) 2.0 A for 10 ms, repeatable every 2 s

Isolation voltage Verified by one of the following dielectric tests: 1200V AC for 1 s or 1697V DC for 1 s, output point to bus

75V DC working voltage (IEC Class 2 reinforced insulation)

Weight, approx 280 g (0.61 lb)

Dimensions (HxWxD), approx 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.)

Height with mounting tabs 138 mm (5.43 in.)

Slot width 1

Module location DIN rail or panel mount

Power supply 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4

Power supply distance rating 8 modules

Terminal screw torque 0.68 Nm (6 lbin)

Retaining screw torque 0.46 Nm (4.1 lbin)

Wire size (22…14 AWG) solid

(22…16 AWG) stranded
