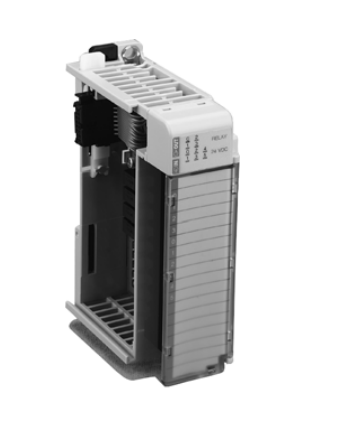

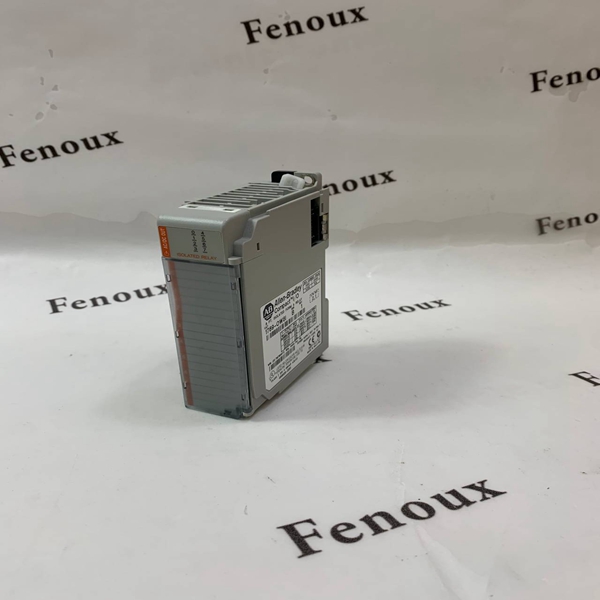

Install the I/O modules on a panel with two mounting screws or on a DIN rail. The modules mechanically lock together
with a tongue-and-groove design and have an integrated communication bus that is connected from module to module
by a movable bus connector.
Description:
Technical Specifications - 1769-IF4XOF2
Attribute 1769-IF4XOF2
Current draw @ 5.1V 120 mA
Current draw @ 24V 160 mA
Heat dissipation, max 3.03 W
Weight, approx 290 g (0.64 lb)
Dimensions (HxWxD), approx 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.)
Height with mounting tabs 138 mm (5.43 in.)
Slot width 1
Module location DIN rail or panel mount
Power supply 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Power supply distance rating 8 modules
Terminal screw torque 0.68 Nlm (6 lblin)
Retaining screw torque 0.46 Nlm (4.1 lblin)
Wire size (22…14 AWG) solid
(22…16 AWG) stranded
Wire type Cu-90 °C (194 °F)
Replacement terminal block 1769-RTBN18 (1 per kit)
Replacement door label 1769-RL2 series B (2 per kit)
Replacement door 1769-RD (2 per kit)
Vendor ID code 1
Product type code 10
Product code 33
Enclosure type rating None (open-style)
1769-IF4XOF2 Input Specifications
Attribute 1769-IF4XOF2
Inputs 4 differential or single-ended
Input range 0…10V
0…20 mA
Full scale range(1) 0…10.5V
0…21 mA
Converter type Successive approximation
Resolution (2) 8 bits plus sign
Response speed per channel 5 ms
Rated working voltage(3) 30V AC/30V DC
Common mode voltage range(4) 10V DC max per channel
Common mode rejection > 60 dB @ 50 and 60 Hz with the 10 Hz filter selected
Input impedance Current: 150 W
Voltage: 150 kW
Accuracy(5) Current: ±0.6% full scale @ 25 °C (77 °F)
Voltage: ±0.7% full scale @ 25 °C (77 °F)
Overall accuracy Current: ±0.8% full scale @ 0…60 °C (32…140 °F)
Voltage: ±0.9% full scale @ 0…60 °C (32…140 °F)
Accuracy drift with temperature Current: ±0.006% per °C
Voltage: ±0.006% per °C
