1771-ODD AB Input module Brand new

Touch a grounded object to rid yourself of charge before handling the

module.

Do not touch the backplane connector or connector pins.

When you configure or replace internal components, do not touch other

circuit components inside the module. If available, use a static-safe

work station.

When not in use, keep the module in its static-shield bag.


INQUIRE NOW

Products Name: 1771-ODD AB Input module Brand new

PRODUCT DESCRIPTION

1771-ODD  AB   Installation Instructions

Brand:  Allen Bradley

Model number:1771-ODD

Colour:new

Warranty: 12 months

Lead Time:3-day working day

Country of origin: USA Price: Please contact us

Product weight:0.805kg

Shipping Port:  China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

1771-ODD  AB  Input module Brand new

Description:

This document provides information on:

important pre-installation considerations

power supply requirements

installing the module

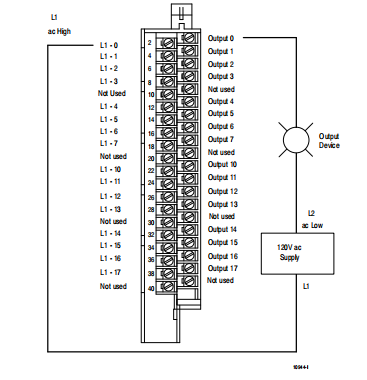

installing and connecting the wiring

replacing the fuse

using the module indicators for troubleshooting

module specifications

An output from this module can drive an Allen-Bradley Size 5 motor

starter, provided its supply voltage does not drop below 92V ac. The

maximum load current the module can deliver is 2A per channel, not to

exceed 8A total per module.

Your module’s outputs can drive the following motor starter combinations:

16 size 3 motor starters (1 per output)

10 size 4 motor starters (1 per output)

7 size 5 motor starters (1 per output)

The switching device in the output circuit is a solid-state triac. There is a

small leakage current in the off state due to both triac and capacitive

characteristics. The maximum leakage current per output is 3mA at 138V

ac. Nominal leakage current is 1.5mA. The on-state voltage drop across

the output terminals will not exceed 1.5V ac at 2A.
