Brand： Allen Bradley

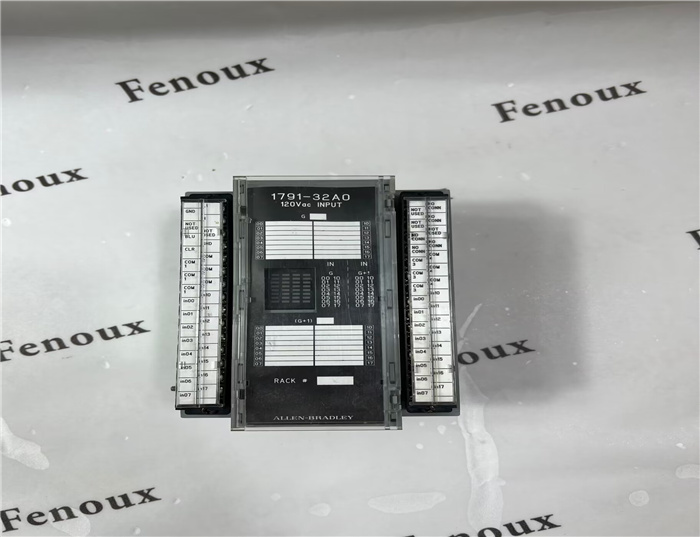

Model number：1791-32A0
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.67kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:

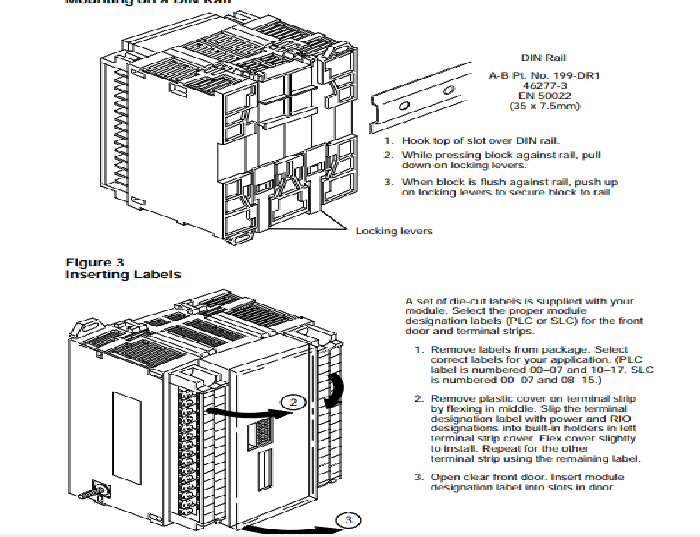

A set of die-cut labels is supplied with your
module. Select the proper module
designation labels (PLC or SLC) for the front
door and terminal strips.
1. Remove labels from package. Select
correct labels for your application. (PLC
label is numbered 00–07 and 10–17. SLC
is numbered 00–07 and 08–15.)
3. Open clear front door. Insert module
designation label into slots in door.
2. Remove plastic cover on terminal strip
by flexing in middle. Slip the terminal
designation label with power and RIO
designations into built-in holders in left
terminal strip cover. Flex cover slightly
to install. Repeat for the other
terminal strip using the remaining label.
The SLC 500 controllers communicate with the block I/O using an I/O Scanner
module (cat. no. 1747-SN series A). Refer to the user manual for the 1747-SN/A
Scanner module for more information.
Important: This block I/O module is not compatible with the 1747-DSN
Distributed I/O Scanner module.
Termination Resistor
A termination resistor must be installed on the last block in a series. Connect the
resistor as shown in Figure 7.
Figure 7
Installing the Termination Resistor
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
