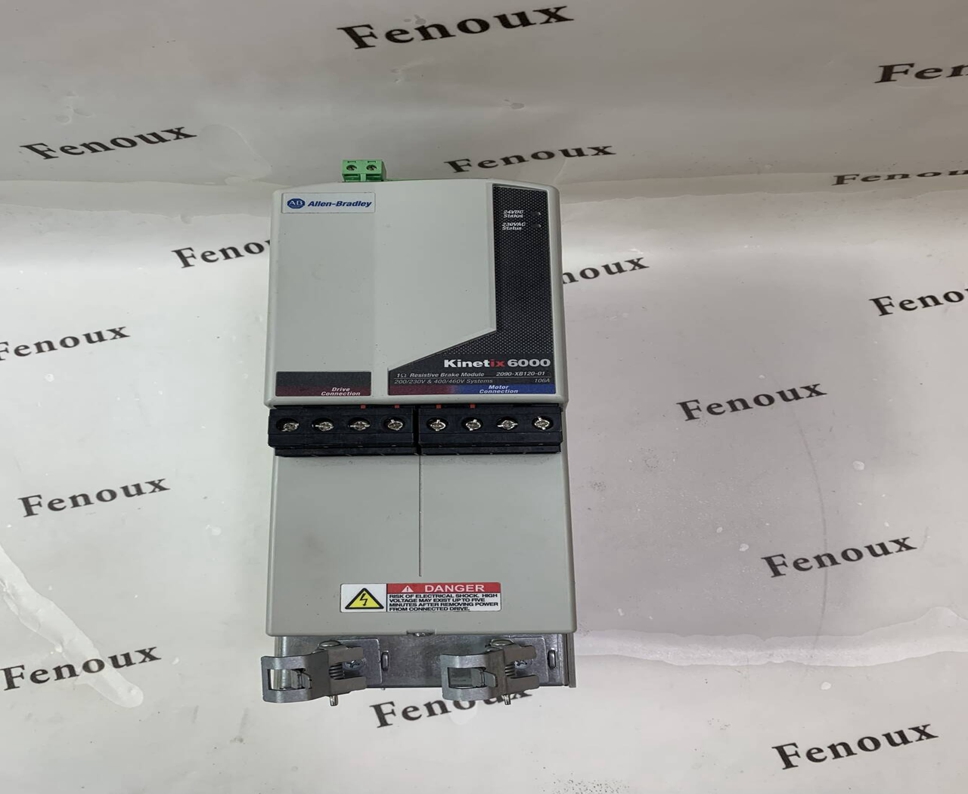

2090-XB120-01 AB

Each RBM ships with:

 This installation sheet (publication 2090-IN009x-EN-P).

 One set of connectors for wiring the RBM to a drive:

 TB1 - Drive Connection

 TB2 - Motor Connection

 TB3 - I/O Connection

 TB4 - 230VAC Aux Power Connection (2090-XB120-xx only)

Note: Power and I/O cables are not provided with the RBM. Refer to

Accessory Equipment on page 23 for catalog numbers of items

available from Rockwell Automation. I/O cables must be

supplied by the user.

Description:

The RBM provides an alternative way to brake a drive system. It provides the

control system engineer with the opportunity to design safety controls into a

machine’s drive system that have two key features:

 Physically and electrically separate the drive power output from its

corresponding motor.

 Reduce the stopping time for a motor and its load should a failure occur to

the machine in which it is installed.

Drive commands are the preferred and quickest way to bring a drive system to

a controlled stop. The RBM provides a non-mechanical method for braking a

drive system, by draining motor energy through a resistive load that dissipates

the energy as waste heat.

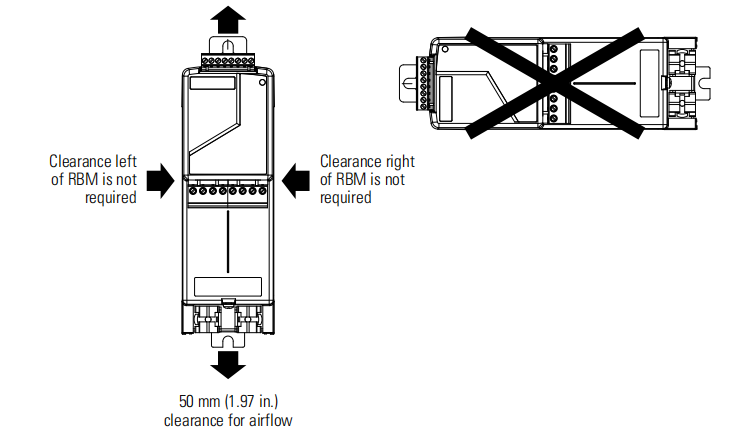

The RBM can resistively brake a motor once per minute with the following
