Brand： Allen Bradley
Model number：2098-DSD-HV150-DN
Colour：new
Warranty: 12 months
Lead Time：3-day working day
Country of origin: USA Price: Please contact us
Product weight：0.63kg
Shipping Port: Xiamen, China
Payment: Bank of Chicago, Bank of Singapore
Express cooperation: fedex, DHL, UPS and your express account
Service: Professional Sales provides 24 hours /7 days online service
Description:
Follow these steps to mount your 2094-PRSx or 2094-PRx power rail.
1. Lay out the position for your power rail in the enclosure. Refer to your servo drive user manual for panel layout recommendations. Mounting hole dimensions for the power rail are shown in the figures on page 6.
2. Attach the power rail to the cabinet. The recommended mounting hardware is M6 metric (1/4x20) bolts. Refer to the System Design for Control of Electrical Noise Reference Manual, publication GMC-RM001,
for HF bonding techniques.
3. Tighten all mounting fasteners. Apply 5.08 N•m (45.0 lb•in) torque.
4. Attach the braided grounding strap from the grounding stud to the bonded cabinet ground

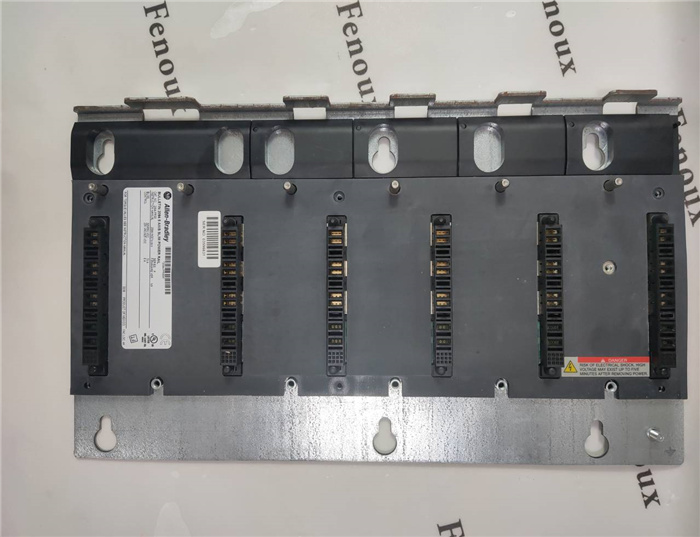

About the Kinetix 6000 Power Rail
The Kinetix 6000 power rail provides power and control signals from the Bulletin 2094 integrated axis (IAM) converter module to adjacent axis (AM) inverter, shunt, and slot-filler modules. The Bulletin 2094 IAM and AM modules, and Kinetix 6000 shunt and slot-filler modules mount on the Kinetix 6000 power rail. For detailed information on wiring, applying power, troubleshooting, and integration with ControlLogix, CompactLogix, and SoftLogix controller platforms, refer to
Additional Resources on page 8, for the appropriate Bulletin 2094 servo drive user manual. Refer to the System Design for Control of Electrical Noise Reference Manual, publication
GMC-RM001, for greater detail on reducing electrical noise when installing your power rail.
