700-HC22Z24-4 ALLEN BRADLEY

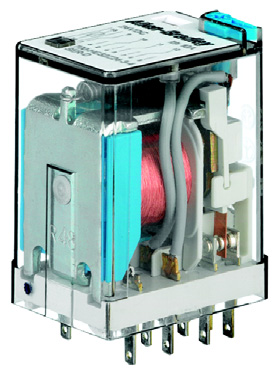

700-HC Miniature Ice Cube Relay

• 7 or 10 A contact ratings

• 2PDT or 4PDT

• Standard ON/OFF flag indicator

• Blade-style terminals

• Choice of standard silver nickel contacts, or silver nickel with gold-plated contacts for low-energy applications

• Options: LED, push-to-test with manual override option

• Tungsten UL Approvals

• 4-Pole: 5A @ 24V DC

• 2-Pole: 10A @ 24V DC

Specifications- 700-HC Relays

Attribute 700-HC

Electrical Ratings

Pilot Duty Rating

(1) See General Information on page 3

NEMA C300, R300

Rated Thermal Current (Ith) 7 A and 10 A

Rated Insulation Voltage (Ui

) 250V IEC – 300V UL/CSA

Contacts

Inductive 700-HC_4 Hp 700-HC22 Hp

120V AC 15 A 1.5 A 1/8 15 A 1.5 A 1/3

240V AC 7.5 A 0.75 A 1/3 7.5 A 0.75 A 3/4

General-purpose 7 A, 277V AC 10 A, 277V AC

Resistive 7 A, 30V DC 10 A, 24V DC

Min. Low Energy Permissible Load 100 mW (10V, 10 mA) - Silver Contacts

50 mW (5V, 10 mA, or 25V, 2 mA) - Gold Contacts

Permissible Coil Voltage Variation Pickup:

80…110% of nom voltage at 50 Hz

80…110% of nom voltage at 60 Hz

80…110% of nom voltage at DC

Must Dropout

Voltage:

20% of nom voltage at AC

10% of nom voltage at DC

50 Hz 60 Hz

Coil

Consumption

±10%

AC Coils Inrush 2.2VA 1.6VA

Sealed 1.3VA 1.1VA

DC Coils 1.0 W

Max. Allowable Leakage 20% of VA (AC)

10% of W (DC)

Design Specification/Test Requirements

Electrical

Dielectric Withstand Voltage Pole-to-Pole 2000V

Contact to Coil 2000V

Electrical Life (Cycles) 100 000 min

Mechanical

Degree of Protection (Open Type) IEC 529 IP 20 (Guarded Terminal Sockets)

Mechanical lifecycles 20 x 10

6(AC), 50 x 10

6 (DC)

Switching Frequency Operations 1800/HR

Coil Voltages See Product Selection

Operating Time (ms) Max. Pickup 10

Max. Dropout 3

Maximum Operating Rate 8 cycles/s

Environmental

Temperature Operating –30…+55 °C (–22…+131 °F)

Storage –55…+85 °C (–67…+185 °F)

Altitude 2000 m (6560 ft)

Insulating Material Molded High Dielectric Material

Enclosure Transparent Dust Cover

Contact Material AgNi (700-HC2), AgNi + 5 μm All (700-HC1)

Terminal Markings on Socket In accordance with EN50 0005

Sockets 700-HN103, -HN128, -HN104

Certifications cURus Recognized (File No. E14843, Guide NRNT2/NRNT8), cULus Listed when used with 700- HN103, -HN104, and -HN128 sockets

(File No. E14843, Guide NRNT/NRNT7), CE Marked, LR Certified

Standards UL 508, CSA 22.2 No. 14, EN 61810-1
