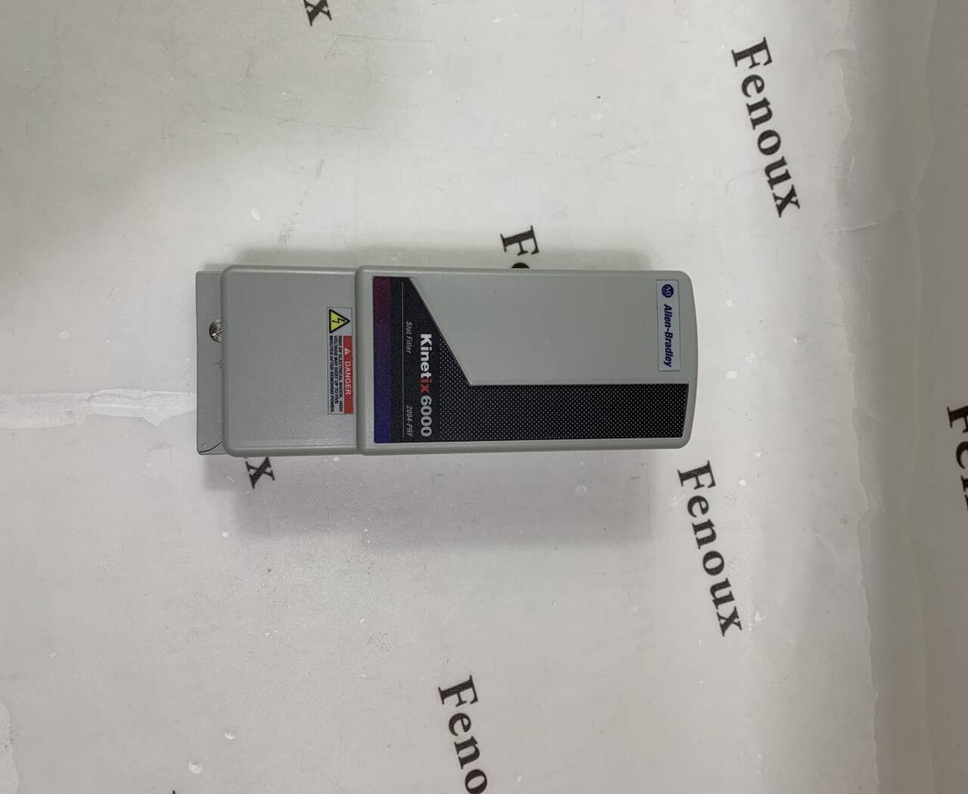

Allen-Bradley 2094-PRF

This procedure assumes you have prepared your panel, mounted your Bulletin

2094 power rail, and understand how to bond your system. For installation

instructions regarding equipment and accessories not included here, refer to the

instructions that came with those products.

Description:

Plan the installation of your system so that you can perform all cutting, drilling,

tapping, and welding with the system removed from the enclosure. Because

the system is of the open type construction, be careful to keep any metal debris

from falling into it. Metal debris or other foreign matter can become lodged in

the circuitry, which can result in damage to components.

Connector pins on the Bulletin 2094 power rail are covered with a protective

boot. To avoid damage to the power rail during installation, do not remove the

protective boot until you are ready to mount your slot-filler module.

TIP All modules mount to the power rail using the same technique, however, the

IAM module is shown in this example.

IMPORTANT The slot-filler module must be positioned to the right of the IAM, AM,

and shunt modules.

ATTENTION To avoid damage to the pins located on the back of the shunt module

and to make sure that module pins mate properly with the power rail,

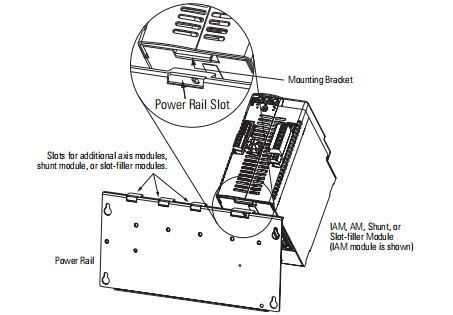

hang modules as shown in steps 3…6.

The power rail must be mounted vertically on the panel before hanging

modules on the power rail. Do not mount modules if the power rail is

horizontal.
