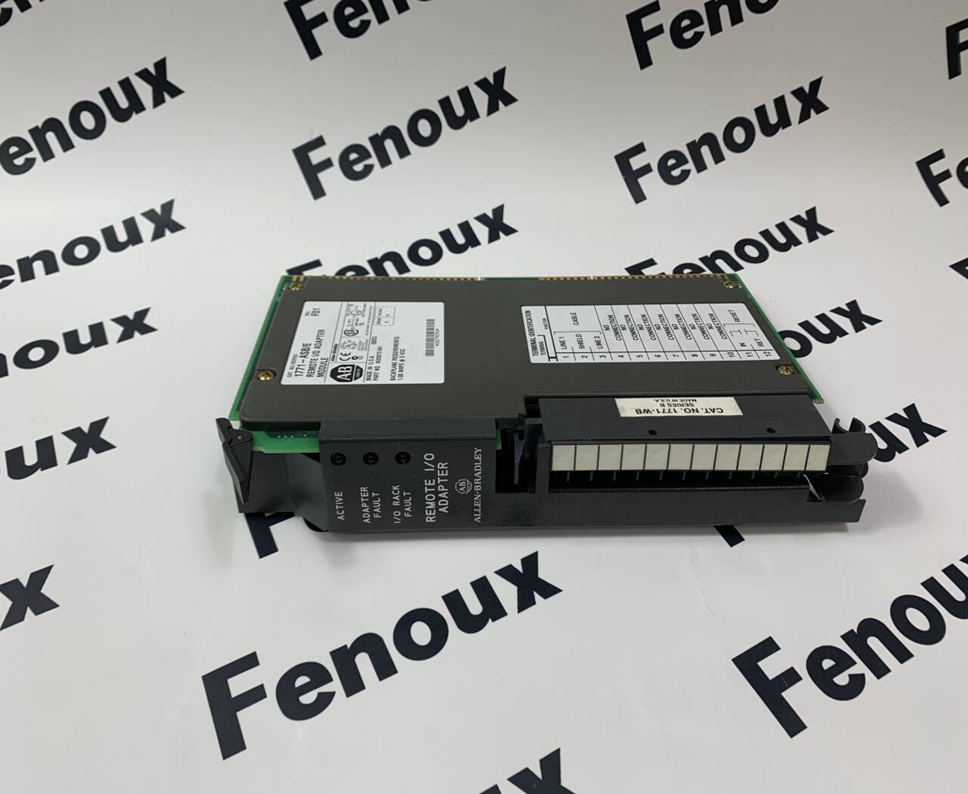

A-B 1771-ASB/E

Product Overview

The Allen-Bradley 1771-ASB/E is a Remote I/O Adapter Module designed for use with Rockwell Automation's PLC-5 family of programmable controllers. It serves as an interface between the PLC and remote I/O modules, allowing for distributed I/O in industrial automation systems.

Key Features and Benefits

• Enhanced Performance: Provides faster backplane scanning and data transmission compared to previous models.

• Flexibility: Supports a wide range of I/O modules, including analog, digital, and specialty modules.

• Reliability: Built to withstand harsh industrial environments and offers robust diagnostics.

• Compatibility: Compatible with various PLC-5 systems and can emulate series B adapters for backward compatibility.

• Ease of Use: Offers enhanced diagnostic indicators for simplified troubleshooting.

Technical Specifications

• Communication: Supports serial communication up to 10,000 cable-feet at 57.6K baud and up to 2500 cable-feet at 230.4K baud.

• I/O Addressing: Supports multiple I/O addressing methods.

• Configuration: Automatically checks I/O configuration on power-up.

• Power: Can be powered by slot power supplies.

Precautions

• Compatibility: Ensure compatibility with the specific PLC-5 system and I/O modules being used.

• Environmental: Observe recommended operating temperature and humidity ranges.

• Installation: Follow proper installation procedures to avoid damage to the module and system.

• Maintenance: Regular inspection and maintenance are recommended for optimal performance.

Applications

The 1771-ASB/E is widely used in various industrial applications, including:

• Manufacturing: Monitoring and controlling production processes.

• Process control: Regulating temperature, pressure, and flow in industrial processes.

• Machine automation: Controlling the operation of machines and equipment.

• Building automation: Managing HVAC systems and other building controls.

Additional Information

• Product Manuals: Refer to the official Rockwell Automation documentation for detailed product specifications and instructions.

• Support: Contact Rockwell Automation support for technical assistance and troubleshooting.

Where to Buy

• Rockwell Automation Distributors: Purchase directly from authorized Rockwell Automation distributors.

• Online Marketplaces: Check online marketplaces like eBay for new and used units.

Note: While this response provides a general overview of the 1771-ASB/E, specific details may vary depending on the exact configuration and application. Always refer to the official product documentation for the most accurate and up-to-date information.
