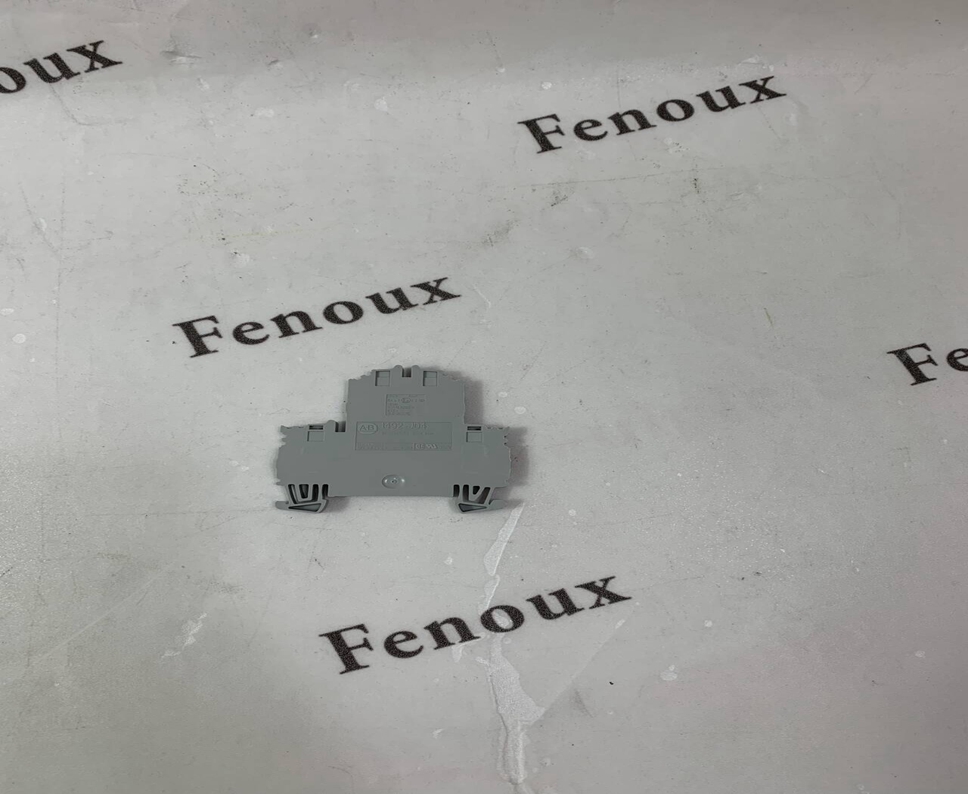

AB 1492-JD4

Product Overview

The Allen-Bradley 1492-JD4 is a terminal block that is used in a variety of industrial automation applications. It is a versatile and reliable module that can be used to connect a

wide range of wires to a control panel or other equipment. The 1492-JD4 is known for its durability, ease of use, and cost-effectiveness.

Product Features

• Double-tier feed-through design: This design allows for easy and efficient wire routing.

• Gray polyamide construction: The polyamide construction is durable and resistant to chemicals and solvents.

• IEC style: The 1492-JD4 is compliant with IEC standards for terminal blocks.

• 35A current rating: The 1492-JD4 can handle up to 35A of current.

• 600V voltage rating: The 1492-JD4 can handle up to 600V of AC or DC voltage.

• 4mm wire size: The 1492-JD4 can accommodate 4mm wire.

• UL listed: The 1492-JD4 is UL listed for safety.

Product Benefits

• Durable: The 1492-JD4 is made from high-quality materials that are resistant to chemicals, solvents, and vibration.

• Easy to use: The 1492-JD4 has a double-tier feed-through design that makes it easy to route wires.

• Cost-effective: The 1492-JD4 is a cost-effective solution for connecting wires in industrial automation applications.

• Versatile: The 1492-JD4 can be used with a wide range of wire sizes and voltages.

Precautions

• Use the correct wire size: The 1492-JD4 can only accommodate 4mm wire. Do not use larger wire sizes, as this could damage the terminal block.

• Do not exceed the current rating: The 1492-JD4 has a 35A current rating. Do not exceed this rating, as this could cause the terminal block to overheat or fail.

• Do not exceed the voltage rating: The 1492-JD4 has a 600V voltage rating. Do not exceed this rating, as this could damage the terminal block or cause an electrical shock.

• Install the terminal block in a dry location: The 1492-JD4 is not waterproof. Do not install it in a location where it will be exposed to moisture.

Applications

The Allen-Bradley 1492-JD4 terminal block is used in a variety of industrial automation applications, including:

• Control panels: The 1492-JD4 is commonly used in control panels to connect wires to control devices, such as relays, contactors, and PLCs.

• Motor starters: The 1492-JD4 can be used in motor starters to connect wires to the motor and the starter contactor.

• Distribution panels: The 1492-JD4 can be used in distribution panels to connect wires to circuit breakers, fuses, and other distribution components.

Ordering Information

The Allen-Bradley 1492-JD4 terminal block can be ordered from authorized Allen-Bradley distributors. The part number is 1492-JD4.
