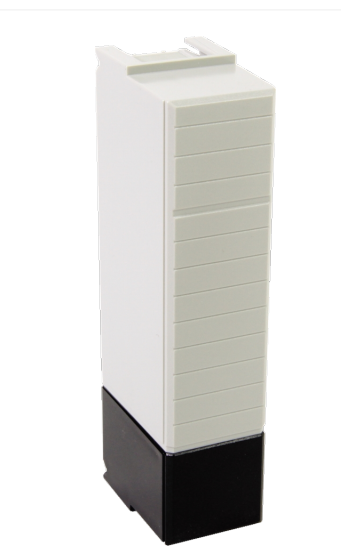

AB 1756-N2

High performance in an easy-to-use environment

· Tight integration between the programming software,

controller, and I/O modules reduces development time

and cost at commissioning and during normal

operation

· Perform standard and safety control in the same

chassis for a truly integrated system

· Leverage the high-availability and extreme

environment capabilities to meet your application

needs

Description:

The redundant power supply system provides additional uptime protection for chassis that are used in critical applications. The two remotely mounted supplies are

designed to share the current required by the chassis. Two supplies are available in AC (catalog number 1756-PA75R/A or 1756-PAXTR) and DC (catalog number 1756-PB75R/

A or 1756-PBXTR) versions that can be mixed or matched when used in tandem.

If one power supply fails, the remaining supply accommodates the entire load of the chassis without disruption to chassis activity. The ControlLogix® redundant power

supply system is designed to account for operational anomalies in only the power supply (the chassis adapter and power supply cables are excluded).

The 1756-PSCA2 chassis adapter is a passive device. The chassis adapter funnels power from one or two ControlLogix redundant power supplies to the single power

connector on the ControlLogix chassis backplane.

This publication contains the following new or updated information. This list includes substantive updates only and isn’t intended to reflect all changes.
