AB 1762-OB16

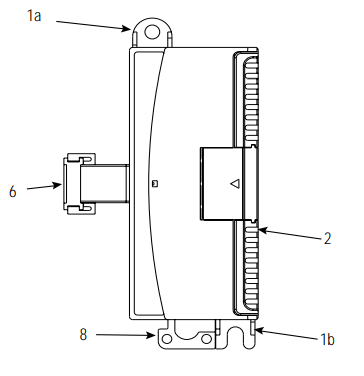

Item Description

1a upper panel mounting tab

1b lower panel mounting tab

2 I/O diagnostic LEDs

3 module door with terminal

identification label

4 bus connector

with male pins

5 bus connector cover

6 flat ribbon cable with bus

connector (female pins)

7 terminal block

8 DIN rail latch

9 pull loop

Description:

Electrostatic discharge can damage integrated circuits or

semiconductors if you touch bus connector pins. Follow these

guidelines when you handle the module:

• Touch a grounded object to discharge static potential.

• Wear an approved wrist-strap grounding device.

• Do not touch the bus connector or connector pins.

• Do not touch circuit components inside the module.

• If available, use a static-safe work station.

• When not in use, keep the module in its static-shield box.

Remove power before removing or installing this module. When

you remove or install a module with power applied, an electrical

arc may occur. An electrical arc can cause personal injury or

property damage by:

• sending an erroneous signal to your system’s field devices,

causing unintended machine motion

• causing an explosion in a hazardous environment

• causing permanent damage to the module’s circuitry

Electrical arcing causes excessive wear to contacts on both the

module and its mating connector. Worn contacts may create

electrical resistance.

(1) Pollution Degree 2 is an environment where, normally, only non-conductive pollution occurs except that

occasionally a temporary conductivity caused by condensation shall be expected.

(2) Over Voltage Category II is the load level section of the electrical distribution system. At this level transient

voltages are controlled and do not exceed the impulse voltage capability of the product’s insulation.

(3) Pollution Degree 2 and Over Voltage Category II are International Electrotechnical Commission (IEC)

designations.
