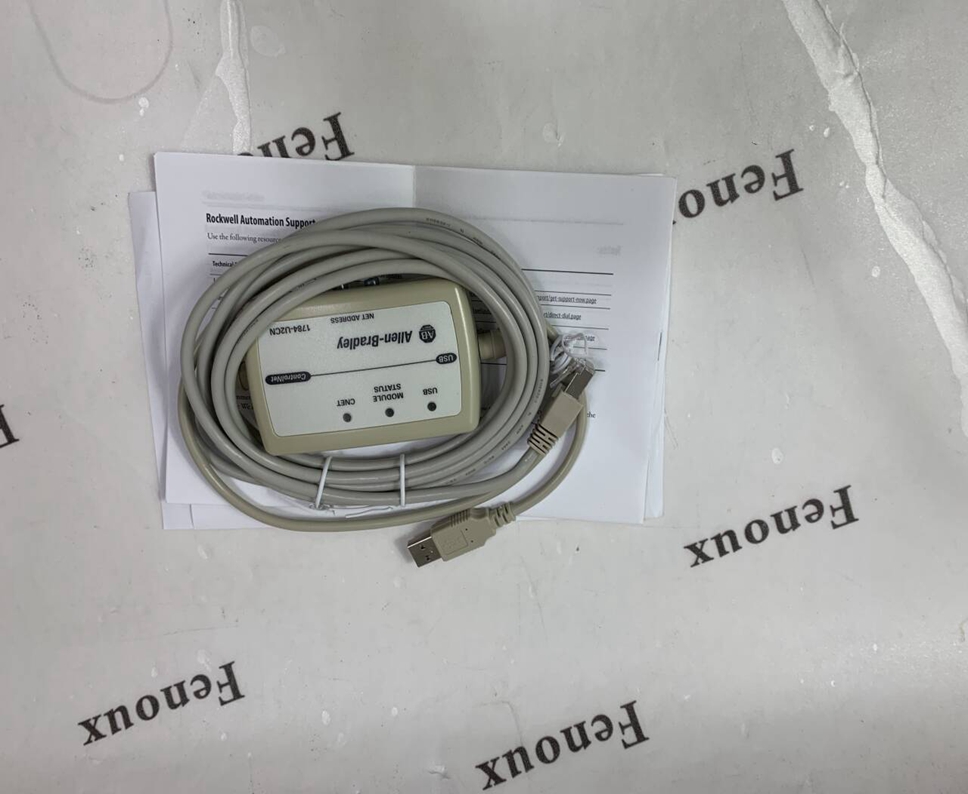

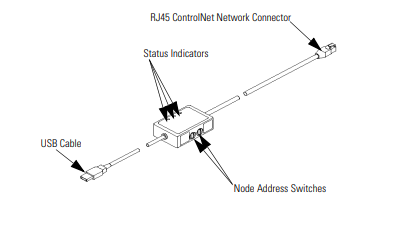

The 1784-U2CN USB-to-ControlNet cable lets you connect a notebook or desktop computer to a ControlNet™ network by using an unused
USB port on the computer. The product replaces the 1784-PCC communication card for computers that do not have PCMCIA slots.
Description:
Attribute 1784-U2CN
Enclosure type rating Meets IP30
Supply voltage 5.25V DC
Supply current 225 mA
Isolation voltage 30V continuous, Basic Insulation Type
Type tested at 500V AC for 60 s, ControlNet to USB
Wiring category(1)
(1) Use this Conductor Category information for planning conductor routing. Refer to Industrial Automation
Wiring and Grounding Guidelines, publication 1770-4.1.
2 - on communication ports
ControlNet current value 70 mA @ 24V
Temperature, operating
IEC 60068-2-1 (Test Ad, Operating Cold),
IEC 60068-2-2 (Test Bd, Operating Dry Heat),
IEC 60068-2-14 (Test Nb, Operating Thermal Shock):
0…55 °C (32…131 °F)
Temperature, nonoperating
IEC 60068-2-1
(Test Ab, Unpackaged Nonoperating Cold),
IEC 60068-2-2
(Test Bb, Unpackaged Nonoperating Dry Heat),
IEC 60068-2-14
(Test Na, Unpackaged Nonoperating Thermal Shock):
-10…+85 °C (14…185 °F)
Temperature, ambient, max. 55 °C (131 °F)
Relative humidity
IEC 60068-2-30 (Test Db, Unpackaged Damp Heat) 5…95% noncondensing
Emissions
CISPR 11 Group 1, Class A
ESD immunity
IEC 61000-4-2 8 kV air discharges
Radiated RF immunity
IEC 61000-4-3
10V/m with 1 kHz sine-wave 80% AM
from 80…2000 MHz
10V/m with 200 Hz 50% Pulse 100% AM
at 900 MHz
10V/m with 200 Hz 50% Pulse 100% AM
at 1890 MHz
10V/m with 1 kHz sine-wave 80% AM
from 2000…2700 MHz
